complexType "CreditChangeEventBase"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 9 elements
Defined:
globally in fpml-business-events-5-13.xsd; see XML source
Includes:
definitions of 8 elements
Used:
at 1 location

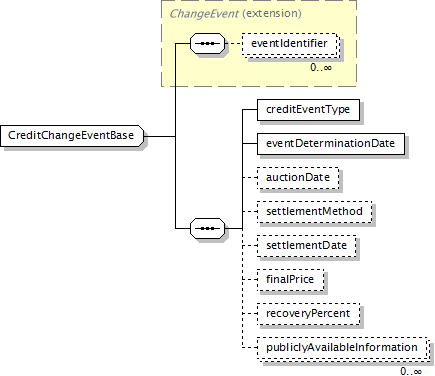

Component Diagram
XML Representation Summary
<...>

Content:
eventIdentifier*, creditEventType, eventDeterminationDate, auctionDate?, settlementMethod?, settlementDate?, finalPrice?, recoveryPercent?, publiclyAvailableInformation*
</...>
Content Model Elements (9):
auctionDate,
creditEventType,
eventDeterminationDate,
eventIdentifier (defined in AbstractEvent complexType),
finalPrice,
publiclyAvailableInformation (in creditChangeEvent),
recoveryPercent,
settlementDate (in creditChangeEvent),
settlementMethod (in creditChangeEvent)
Known Direct Subtypes (1):
CreditChangeEvent
All Direct / Indirect Based Elements (1):
creditChangeEvent
Known Usage Locations
Annotation
A structure indicating that a trade has changed due to a credit event and containing only components shared by single name, index and basket.
Type Definition Detail
Type Derivation Tree
AbstractEvent (extension)
  ChangeEvent (extension)
      CreditChangeEventBase
XML Source (w/o annotations (9); see within schema source)
<xsd:complexType name="CreditChangeEventBase">
<xsd:complexContent>
<xsd:extension base="ChangeEvent">
<xsd:sequence>
<xsd:element name="creditEventType" type="CreditEventType"/>
<xsd:element name="eventDeterminationDate" type="xsd:date"/>
<xsd:element minOccurs="0" name="auctionDate" type="xsd:date"/>
<xsd:element minOccurs="0" name="settlementMethod" type="CashOrPhysicalSettlementEnum"/>
<xsd:element minOccurs="0" name="settlementDate" type="xsd:date"/>
<xsd:element minOccurs="0" name="finalPrice" type="xsd:decimal"/>
<xsd:element minOccurs="0" name="recoveryPercent" type="xsd:decimal"/>
<xsd:element maxOccurs="unbounded" minOccurs="0" name="publiclyAvailableInformation" type="Resource"/>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 8/9)
auctionDate
Type:
xsd:date, predefined, simple content
The date on which the auction is scheduled to occur.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="auctionDate" type="xsd:date"/>
creditEventType
Type:
CreditEventType, simple content
Specifies the type of credit event taking place.
Simple Content
xsd:normalizedString
maxLength:
255
minLength:
0
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="creditEventType" type="CreditEventType"/>
eventDeterminationDate
Type:
xsd:date, predefined, simple content
The date at which a Credit Event Resolution Request Date (CERD) or Notice Delivery Date occurs.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="eventDeterminationDate" type="xsd:date"/>
finalPrice
Type:
xsd:decimal, predefined, simple content
The final price resulting from the auction.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="finalPrice" type="xsd:decimal"/>
publiclyAvailableInformation
Type:
Resource, complex content
A public information source, e.g. a particular newspaper or electronic news service, that may publish relevant information used in the determination of whether or not a credit event has occurred.
XML Source (w/o annotations (1); see within schema source)
<xsd:element maxOccurs="unbounded" minOccurs="0" name="publiclyAvailableInformation" type="Resource"/>
recoveryPercent
Type:
xsd:decimal, predefined, simple content
The percentage of the original value of the asset affected by the credit event that can be recovered.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="recoveryPercent" type="xsd:decimal"/>
settlementDate
Type:
xsd:date, predefined, simple content
The date on which settlement is scheduled to occur.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="settlementDate" type="xsd:date"/>
settlementMethod
Type:
CashOrPhysicalSettlementEnum, simple content
Specifies whether the process is to be physically settled or cash settled.
Simple Content
enumeration of xsd:token
Enumeration:
"Cash", "Physical"
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="settlementMethod" type="CashOrPhysicalSettlementEnum"/>
