complexType "CreditDefaultSwapOption"

Namespace:	http://www.fpml.org/FpML-5/confirmation
Content:	complex, 1 attribute, 26 elements
Defined:	globally in fpml-cd-5-13.xsd; see XML source
Includes:	definitions of 3 elements
Used:	at 1 location

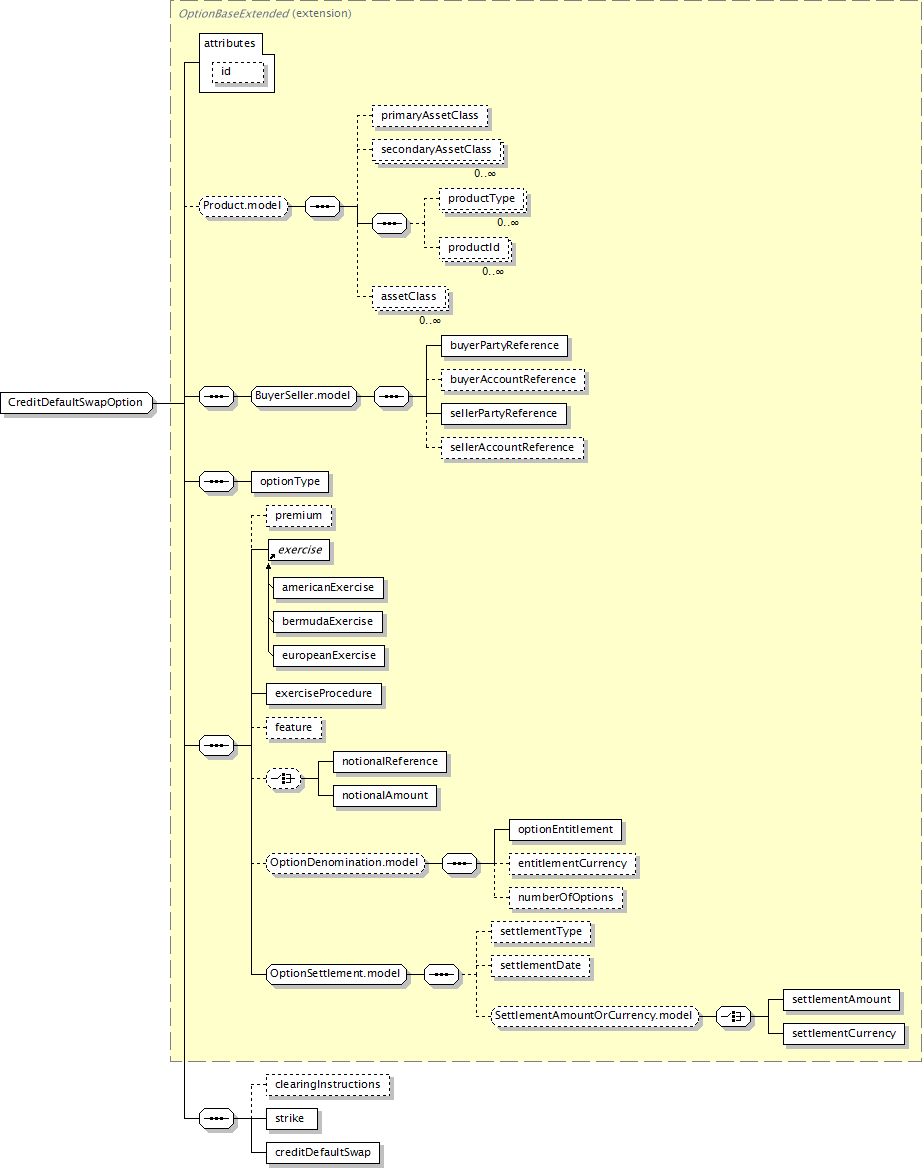

Component Diagram

XML Representation Summary

<...

xsd:ID

Content:

</...>

Content Model Elements (26):

assetClass,

buyerAccountReference,

buyerPartyReference (defined in BuyerSeller.model group),

clearingInstructions (in creditDefaultSwapOption),

creditDefaultSwap (in creditDefaultSwapOption),

entitlementCurrency,

exercise,

exerciseProcedure (defined in OptionBaseExtended complexType),

feature (defined in OptionBaseExtended complexType),

notionalAmount (defined in OptionBaseExtended complexType),

notionalReference (defined in OptionBaseExtended complexType),

numberOfOptions (defined in OptionDenomination.model group),

optionEntitlement (defined in OptionDenomination.model group),

optionType (defined in OptionBase complexType),

premium (defined in OptionBaseExtended complexType),

primaryAssetClass,

productId (defined in Product.model group),

productType (defined in Product.model group),

secondaryAssetClass,

sellerAccountReference,

sellerPartyReference (defined in BuyerSeller.model group),

settlementAmount (defined in SettlementAmountOrCurrency.model group),

settlementCurrency (defined in SettlementAmountOrCurrency.model group),

settlementDate (defined in OptionSettlement.model group),

settlementType (defined in OptionSettlement.model group),

strike (in creditDefaultSwapOption)

All Direct / Indirect Based Elements (1):

creditDefaultSwapOption

Known Usage Locations

As direct type of elements (1):

creditDefaultSwapOption

Annotation

A complex type to support the credit default swap option.

Type Definition Detail

Type Derivation Tree

Product (extension)

Option (extension)

OptionBase (extension)

OptionBaseExtended (extension)

CreditDefaultSwapOption

XML Source (w/o annotations (3); see within schema source)

<xsd:complexType name="CreditDefaultSwapOption">

<xsd:complexContent>

<xsd:extension base="OptionBaseExtended">

<xsd:sequence>

<xsd:element minOccurs="0" name="clearingInstructions" type="SwaptionPhysicalSettlement"/>

<xsd:element name="strike" type="CreditOptionStrike"/>

<xsd:element name="creditDefaultSwap" type="CreditDefaultSwap"/>

</xsd:sequence>

</xsd:extension>

</xsd:complexContent>

</xsd:complexType>

Content Element Detail (all declarations; defined within this component only; 3/26)

clearingInstructions

Type:

SwaptionPhysicalSettlement, complex content

Specifies any instructions on how the physical settlement is to be effected when the option is exercised.

XML Source (w/o annotations (1); see within schema source)

<xsd:element minOccurs="0" name="clearingInstructions" type="SwaptionPhysicalSettlement"/>

creditDefaultSwap

Type:

CreditDefaultSwap, complex content

XML Source (see within schema source)

<xsd:element name="creditDefaultSwap" type="CreditDefaultSwap"/>

strike

Type:

CreditOptionStrike, complex content

Specifies the strike of the option on credit default swap.

XML Source (w/o annotations (1); see within schema source)

<xsd:element name="strike" type="CreditOptionStrike"/>
