complexType "CommodityNotionalAmount"

Namespace:	http://www.fpml.org/FpML-5/confirmation
Content:	complex, 1 attribute, 3 elements
Defined:	globally in fpml-com-5-13.xsd; see XML source
Includes:	definition of 1 element
Used:	at 3 locations

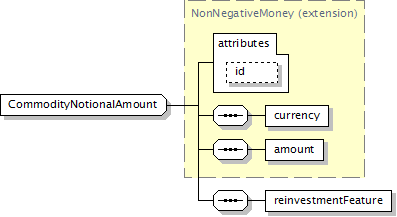

Component Diagram

XML Representation Summary

<...

xsd:ID

Content:

currency, amount, reinvestmentFeature

</...>

Content Model Elements (3):

amount (defined in NonNegativeMoney complexType),

currency (defined in MoneyBase complexType),

reinvestmentFeature

All Direct / Indirect Based Elements (3):

notionalAmount (in commodityInterestLeg),

notionalAmount (in commodityReturnLeg),

notionalAmount (in commodityVarianceLeg)

Known Usage Locations

As direct type of elements (3):

notionalAmount (in commodityInterestLeg),

notionalAmount (in commodityReturnLeg),

notionalAmount (in commodityVarianceLeg)

Annotation

A complex type to specify the notional amount.

Type Definition Detail

Type Derivation Tree

MoneyBase (extension)

NonNegativeMoney (extension)

CommodityNotionalAmount

XML Source (w/o annotations (2); see within schema source)

<xsd:complexType name="CommodityNotionalAmount">

<xsd:complexContent>

<xsd:extension base="NonNegativeMoney">

<xsd:sequence>

<xsd:element name="reinvestmentFeature" type="xsd:boolean"/>

</xsd:sequence>

</xsd:extension>

</xsd:complexContent>

</xsd:complexType>

Content Element Detail (all declarations; defined within this component only; 1/3)

reinvestmentFeature

Type:

xsd:boolean, predefined, simple content

This element indicates whether the notional amount (or equivalent) is constant across each Calculation Period or whether the notional amount in each Calculation Period ("false") is the notional amount in the previous period multiplied by 1 + commodity index return in the current period ("true"). In cases where reinstementFeature = true the 'amount' element is the Initial Notional Amount (or equivalent).

XML Source (w/o annotations (1); see within schema source)

<xsd:element name="reinvestmentFeature" type="xsd:boolean"/>
