complexType "RequestConfirmation"

Namespace:	http://www.fpml.org/FpML-5/confirmation
Content:	complex, 3 attributes, 23 elements
Defined:	globally in fpml-confirmation-processes-5-13.xsd; see XML source
Includes:	definition of 1 element
Used:	at 1 location

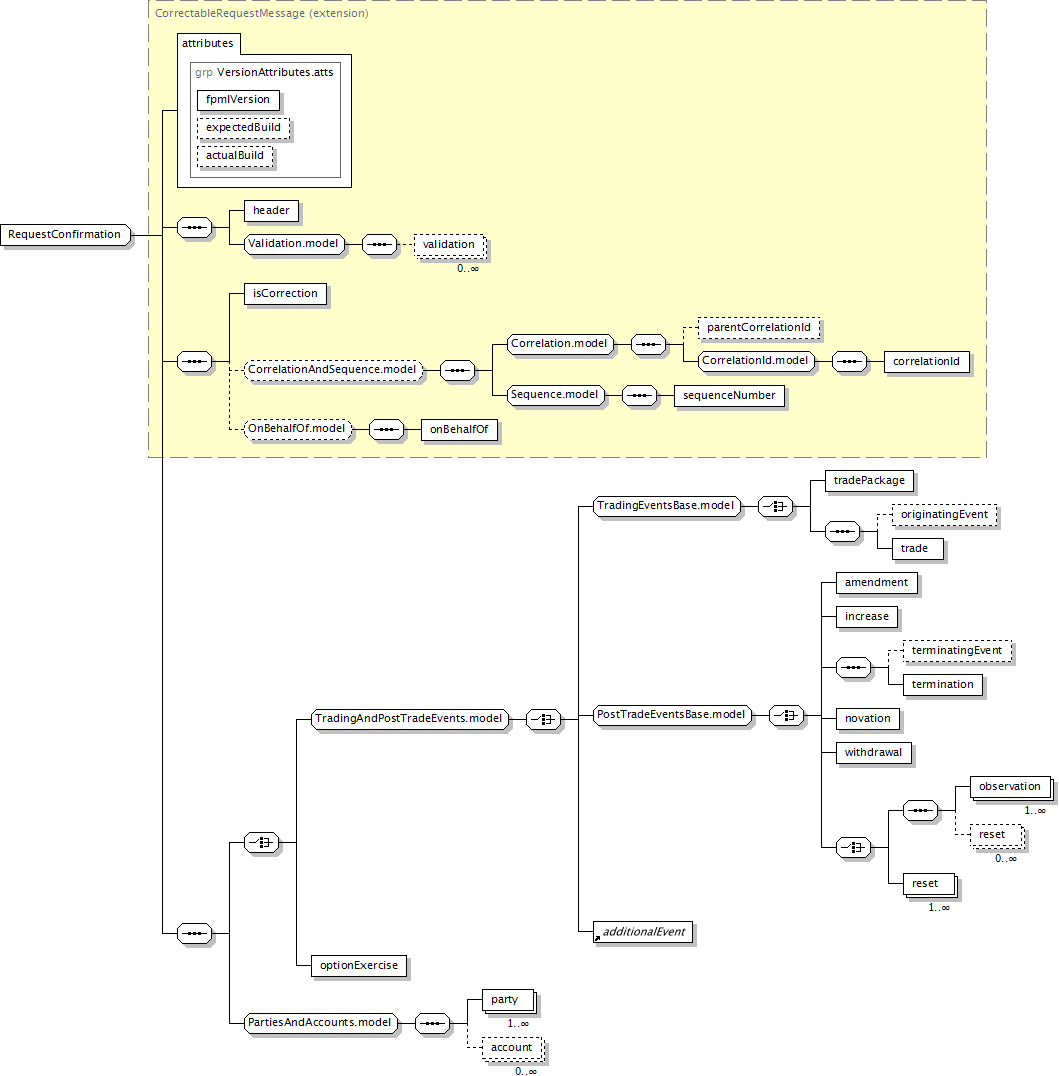

Component Diagram

XML Representation Summary

<...

fpmlVersion	=	xsd:token
expectedBuild	=	xsd:positiveInteger
actualBuild	=	"4"

Content:

</...>

Content Model Elements (23):

account,

additionalEvent,

amendment (defined in PostTradeEventsBase.model group),

correlationId,

header (defined in RequestMessage complexType),

increase,

isCorrection,

novation,

observation (defined in PostTradeEventsBase.model group),

onBehalfOf (defined in OnBehalfOf.model group),

optionExercise (in requestConfirmation),

originatingEvent (defined in TradingEventsBase.model group),

parentCorrelationId,

party (defined in PartiesAndAccounts.model group),

reset (defined in PostTradeEventsBase.model group),

sequenceNumber (defined in Sequence.model group),

terminatingEvent (defined in PostTradeEventsBase.model group),

termination (defined in PostTradeEventsBase.model group),

trade (defined in TradingEventsBase.model group),

tradePackage (defined in TradingEventsBase.model group),

validation,

withdrawal

All Direct / Indirect Based Elements (1):

requestConfirmation

Known Usage Locations

As direct type of elements (1):

requestConfirmation

Annotation

A message type defining the start of the confirmation process. The message may be used to request the confirmation of a new trade or any other event supported by FpML such as novation, terminations, amendments, etc.

Type Definition Detail

Type Derivation Tree

Document (extension)

Message (extension)

RequestMessage (extension)

CorrectableRequestMessage (extension)

RequestConfirmation

XML Source (w/o annotations (2); see within schema source)

<xsd:complexType name="RequestConfirmation">

<xsd:complexContent>

<xsd:extension base="CorrectableRequestMessage">

<xsd:sequence>

<xsd:choice>

<xsd:group ref="TradingAndPostTradeEvents.model"/>

<xsd:element name="optionExercise" type="OptionExercise"/>

</xsd:choice>

<xsd:group ref="PartiesAndAccounts.model"/>

</xsd:sequence>

</xsd:extension>

</xsd:complexContent>

</xsd:complexType>

Content Element Detail (all declarations; defined within this component only; 1/23)

optionExercise

Type:

OptionExercise, complex content

A structure describing an option exercise event. The optionExercise event supports partial exercise (specify the number of options or amount to exercise), full exercise (use fullExercise flag), as well as the option to request options not to be exercised.

XML Source (w/o annotations (1); see within schema source)

<xsd:element name="optionExercise" type="OptionExercise"/>
