complexType "FxRateObservable"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 1 attribute, 3 elements
Defined:
globally in fpml-fx-accruals-5-13.xsd; see XML source
Includes:
definitions of 1 attribute, 3 elements
Used:
at 2 locations

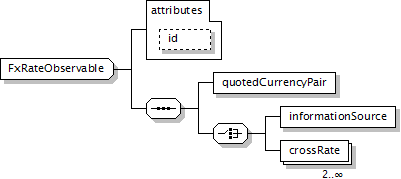

Component Diagram
XML Representation Summary
<...

id
 =
xsd:ID

>

Content:
quotedCurrencyPair, (informationSource | crossRate[2..*])
</...>
Content Model Elements (3):
crossRate (defined in FxRateObservable complexType),
informationSource (defined in FxRateObservable complexType),
quotedCurrencyPair (defined in FxRateObservable complexType)
Known Direct Subtypes (1):
FxAveragingProcess
Known Indirect Subtypes (2):
FxAverageRate, FxAverageStrike
All Direct / Indirect Based Elements (5):
averageRate (in fxAccrualForward),
averageRate (in fxAccrualOption),
averageStrike (in fxAccrualOption),
averageStrike (in linearPayoffRegion in fxAccrualForward),
observable
Known Usage Locations
XML Source (w/o annotations (3); see within schema source)
<xsd:complexType name="FxRateObservable">
<xsd:sequence>
<xsd:element name="quotedCurrencyPair" type="QuotedCurrencyPair"/>
<xsd:choice>
<xsd:element name="informationSource" type="FxInformationSource"/>
<xsd:element maxOccurs="unbounded" minOccurs="2" name="crossRate" type="FxCrossRateObservable"/>
</xsd:choice>
</xsd:sequence>
<xsd:attribute name="id" type="xsd:ID"/>
</xsd:complexType>
Attribute Detail (all declarations; defined within this component only; 1/1)
id
Type:
xsd:ID, predefined
Use:
optional
XML Source (see within schema source)
<xsd:attribute name="id" type="xsd:ID"/>
Content Element Detail (all declarations; defined within this component only; 3/3)
crossRate
Type:
FxCrossRateObservable, complex content
Contains the currency exchange rates information used to cross between the traded currencies for non-base currency FX contracts.
XML Source (w/o annotations (1); see within schema source)
<xsd:element maxOccurs="unbounded" minOccurs="2" name="crossRate" type="FxCrossRateObservable"/>
informationSource
Type:
FxInformationSource, complex content
Information source for fixing the exchange rate. It is the same for all fixing periods.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="informationSource" type="FxInformationSource"/>
quotedCurrencyPair
Type:
QuotedCurrencyPair, complex content
FX rate to be observed. The Quoted Currency Pair that is used across the product.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="quotedCurrencyPair" type="QuotedCurrencyPair"/>
