complexType "FxInformationSource"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 4 elements
Defined:
globally in fpml-shared-5-13.xsd; see XML source
Includes:
definition of 1 element
Used:
at 4 locations

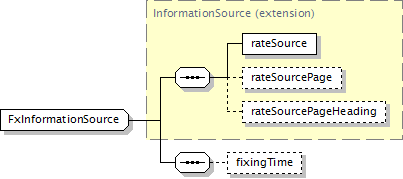

Component Diagram
XML Representation Summary
<...>

Content:
rateSource, rateSourcePage?, rateSourcePageHeading?, fixingTime?
</...>
Content Model Elements (4):
fixingTime (defined in FxInformationSource complexType),
rateSource (defined in InformationSource complexType),
rateSourcePage (defined in InformationSource complexType),
rateSourcePageHeading (defined in InformationSource complexType)
All Direct / Indirect Based Elements (4):
fixingInformationSource (in fxTargetKnockoutForward),
informationSource (defined in FxRateObservable complexType),
informationSource (in crossRate defined in FxRateObservable complexType),
nonstandardSettlementRate
Known Usage Locations
Type Definition Detail
Type Derivation Tree
InformationSource (extension)
  FxInformationSource
XML Source (w/o annotations (1); see within schema source)
<xsd:complexType name="FxInformationSource">
<xsd:complexContent>
<xsd:extension base="InformationSource">
<xsd:sequence>
<xsd:element minOccurs="0" name="fixingTime" type="BusinessCenterTime"/>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 1/4)
fixingTime
Type:
BusinessCenterTime, complex content
The time that the fixing will be taken along with a business center to define the time zone
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="fixingTime" type="BusinessCenterTime"/>
