element <fxLinkedNotionalAmount> (local)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
FxLinkedNotionalAmount
Content:
complex, 4 elements
Defined:
locally within CalculationPeriod complexType in fpml-ird-5-13.xsd; see XML source

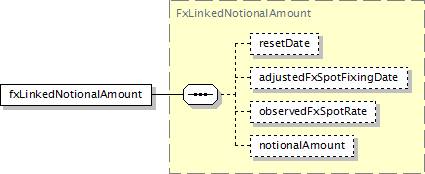

Component Diagram
XML Representation Summary
<fxLinkedNotionalAmount>

Content:
resetDate?, adjustedFxSpotFixingDate?, observedFxSpotRate?, notionalAmount?
</fxLinkedNotionalAmount>
Content model elements (4):
adjustedFxSpotFixingDate,
notionalAmount (in fxLinkedNotionalAmount),
observedFxSpotRate,
resetDate (in fxLinkedNotionalAmount)
Included in content model of elements (1):
calculationPeriod  (in paymentCalculationPeriod)
Annotation
The amount that a cashflow will accrue interest on. This is the calculated amount of the fx linked - ie the other currency notional amount multiplied by the appropriate fx spot rate.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="fxLinkedNotionalAmount" type="FxLinkedNotionalAmount"/>
