complexType "AbstractLoanTradeEvent"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 8 elements
Abstract:
(cannot be assigned directly to elements used in instance XML documents)
Defined:
globally in fpml-loan-5-13.xsd; see XML source
Includes:
definition of 1 element
Used:
at 4 locations

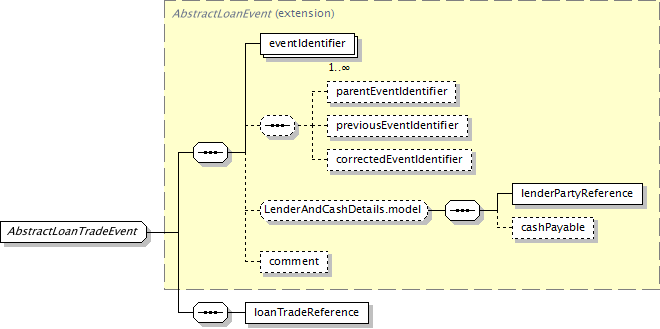

Component Diagram
XML Representation Summary
<...>

Content:
eventIdentifier+, (parentEventIdentifier?, previousEventIdentifier?, correctedEventIdentifier?)?, (lenderPartyReference, cashPayable?)?, comment?, loanTradeReference
</...>
Content Model Elements (8):
cashPayable,
comment (defined in AbstractLoanEvent complexType),
correctedEventIdentifier,
eventIdentifier (defined in AbstractLoanEvent complexType),
lenderPartyReference (defined in LenderAndCashDetails.model group),
loanTradeReference (defined in AbstractLoanTradeEvent complexType),
parentEventIdentifier,
previousEventIdentifier
Known Direct Subtypes (3):
LoanTradeEvent, LoanTradeTransferFeeDue, LoanTradeTransferFeeOwed
All Direct / Indirect Based Elements (5):
loanTrade, loanTradeConfirmation, loanTradeEventGroup, loanTradeFeeDue, loanTradeFeeOwed
Known Usage Locations
Annotation
An abstract structure defining fundamental master loan trade event information.
Type Definition Detail
Type Derivation Tree
AbstractLoanEvent (extension)
  AbstractLoanTradeEvent
XML Source (w/o annotations (1); see within schema source)
<xsd:complexType abstract="true" name="AbstractLoanTradeEvent">
<xsd:complexContent>
<xsd:extension base="AbstractLoanEvent">
<xsd:sequence>
<xsd:element name="loanTradeReference" type="LoanTradeReference"/>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 1/8)
loanTradeReference
Type:
LoanTradeReference, empty content
XML Source (see within schema source)
<xsd:element name="loanTradeReference" type="LoanTradeReference"/>
XML schema documentation generated with FlexDoc/XML 1.12.2 using FlexDoc/XML XSDDoc 2.9.1 template set. All XSD diagrams generated by FlexDoc/XML DiagramKit.
