complexType "AbstractTask"

Namespace:	http://www.fpml.org/FpML-5/confirmation
Content:	complex, 8 elements
Abstract:	(cannot be assigned directly to elements used in instance XML documents)
Defined:	globally in fpml-loan-5-13.xsd; see XML source
Includes:	definitions of 8 elements
Used:	at 4 locations

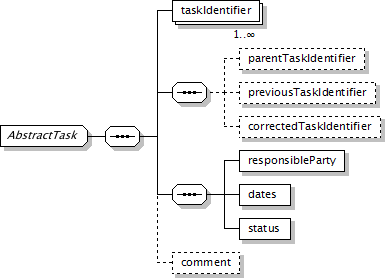

Component Diagram

XML Representation Summary

<...>

Content:

taskIdentifier+, parentTaskIdentifier?, previousTaskIdentifier?, correctedTaskIdentifier?, responsibleParty, dates, status, comment?

</...>

Content Model Elements (8):

comment (defined in AbstractTask complexType),

correctedTaskIdentifier,

dates,

parentTaskIdentifier,

previousTaskIdentifier,

responsibleParty,

status (defined in AbstractTask complexType),

taskIdentifier (defined in AbstractTask complexType)

Known Direct Subtypes (4):

LoanAllocationSettlementTask, LoanCovenantObligationTask, LoanLegalActionTask, LoanTradeSettlementTask

All Direct / Indirect Based Elements (4):

covenantTask,

legalActionTask,

settlementTask (in loanAllocationNotification),

settlementTask (in loanTradeNotification)

Known Usage Locations

In derivations of other global types (4):

LoanAllocationSettlementTask (as extension base),

LoanCovenantObligationTask (as extension base),

LoanLegalActionTask (as extension base),

LoanTradeSettlementTask (as extension base)

Annotation

An underlying abstract structure that defines the responsible party for tasks that must be completed.

XML Source (w/o annotations (8); see within schema source)

<xsd:complexType abstract="true" name="AbstractTask">

<xsd:sequence>

<xsd:element maxOccurs="unbounded" name="taskIdentifier" type="TaskIdentifier"/>

<xsd:sequence>

<xsd:element minOccurs="0" name="parentTaskIdentifier" type="ParentTaskIdentifier"/>

<xsd:element minOccurs="0" name="previousTaskIdentifier" type="TaskIdentifier"/>

<xsd:element minOccurs="0" name="correctedTaskIdentifier" type="TaskIdentifier"/>

</xsd:sequence>

<xsd:sequence>

<xsd:element name="responsibleParty" type="PartyReference"/>

<xsd:element name="dates" type="TaskDates"/>

<xsd:element name="status" type="TaskStatusEnum"/>

</xsd:sequence>

<xsd:element minOccurs="0" name="comment" type="NonEmptyString"/>

</xsd:sequence>

</xsd:complexType>

Content Element Detail (all declarations; defined within this component only; 8/8)

comment

Type:

NonEmptyString, simple content

A freetext field which allows the sender to add further details around the task.

Simple Content

xsd:string

minLength:

XML Source (w/o annotations (1); see within schema source)

<xsd:element minOccurs="0" name="comment" type="NonEmptyString"/>

correctedTaskIdentifier

Type:

TaskIdentifier, complex content

A unique identifier associated with a previous ‘inaccurate task.’ Population of this identifier represents that this task is a ‘corrective measure’ to a previous task, rather than being a stand-alone task.

XML Source (w/o annotations (1); see within schema source)

<xsd:element minOccurs="0" name="correctedTaskIdentifier" type="TaskIdentifier"/>

dates

Type:

TaskDates, complex content

Dates relevant to the task.

XML Source (w/o annotations (1); see within schema source)

<xsd:element name="dates" type="TaskDates"/>

parentTaskIdentifier

Type:

ParentTaskIdentifier, complex content

An identifier used to identify a group of related tasks.

XML Source (w/o annotations (1); see within schema source)

<xsd:element minOccurs="0" name="parentTaskIdentifier" type="ParentTaskIdentifier"/>

previousTaskIdentifier

Type:

TaskIdentifier, complex content

XML Source (w/o annotations (1); see within schema source)

<xsd:element minOccurs="0" name="previousTaskIdentifier" type="TaskIdentifier"/>

responsibleParty

Type:

PartyReference, empty content

A reference to the party responsible for the completion of the task.

XML Source (w/o annotations (1); see within schema source)

<xsd:element name="responsibleParty" type="PartyReference"/>

status

Type:

TaskStatusEnum, simple content

An enum to define the status of the task.

Simple Content

enumeration of xsd:token

Enumeration:

"Active"	-	Indicates a task status of active. See: http://www.FpML.org
"Cleared"	-	Indicates a task status of cleared (i.e. the task is completed). See: http://www.FpML.org
"Cancelled"	-	Indicates a task status of cancelled (i.e. the task was cancelled and no longer needs to be completed). See: http://www.FpML.org

XML Source (w/o annotations (1); see within schema source)

<xsd:element name="status" type="TaskStatusEnum"/>

taskIdentifier

Type:

TaskIdentifier, complex content

XML Source (see within schema source)

<xsd:element maxOccurs="unbounded" name="taskIdentifier" type="TaskIdentifier"/>
