complexType "LoanLegalActionTask"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 11 elements
Defined:
globally in fpml-loan-5-13.xsd; see XML source
Includes:
definitions of 3 elements
Used:
at 1 location

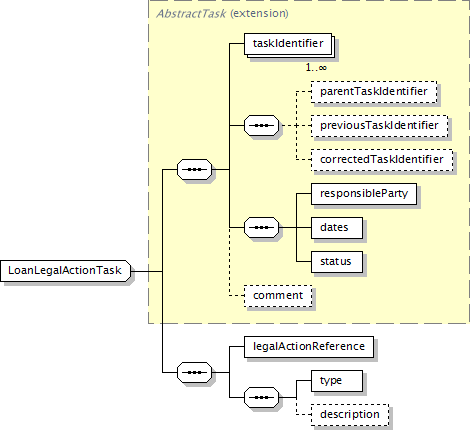

Component Diagram
XML Representation Summary
<...>

Content:
taskIdentifier+, parentTaskIdentifier?, previousTaskIdentifier?, correctedTaskIdentifier?, responsibleParty, dates, status, comment?, legalActionReference, type, description?
</...>
Content Model Elements (11):
comment (defined in AbstractTask complexType),
correctedTaskIdentifier,
dates,
description (in legalActionTask),
legalActionReference (in legalActionTask),
parentTaskIdentifier,
previousTaskIdentifier,
responsibleParty,
status (defined in AbstractTask complexType),
taskIdentifier (defined in AbstractTask complexType),
type (in legalActionTask)
All Direct / Indirect Based Elements (1):
legalActionTask
Known Usage Locations
Annotation
A structure that details tasks and their statuses, the completion of which are prerequisites to a legal action.
Type Definition Detail
Type Derivation Tree
AbstractTask (extension)
  LoanLegalActionTask
XML Source (w/o annotations (4); see within schema source)
<xsd:complexType abstract="false" name="LoanLegalActionTask">
<xsd:complexContent>
<xsd:extension base="AbstractTask">
<xsd:sequence>
<xsd:element name="legalActionReference" type="LoanLegalActionReference"/>
<xsd:sequence>
<xsd:element name="type" type="LoanLegalActionTaskType"/>
<xsd:element minOccurs="0" name="description" type="NonEmptyNormalizedString"/>
</xsd:sequence>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 3/11)
description
Type:
NonEmptyNormalizedString, simple content
A free form field to provide addition description of the legal action task.
Simple Content
xsd:normalizedString
minLength:
1
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="description" type="NonEmptyNormalizedString"/>
legalActionReference
Type:
LoanLegalActionReference, empty content
Reference to a legal action.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="legalActionReference" type="LoanLegalActionReference"/>
type
Type:
LoanLegalActionTaskType, simple content
The type of the legal action task.
Simple Content
xsd:normalizedString
maxLength:
255
minLength:
1
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="type" type="LoanLegalActionTaskType"/>
