complexType "FacilitySummary"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 1 attribute, 16 elements
Defined:
globally in fpml-loan-5-13.xsd; see XML source
Used:
at 2 locations

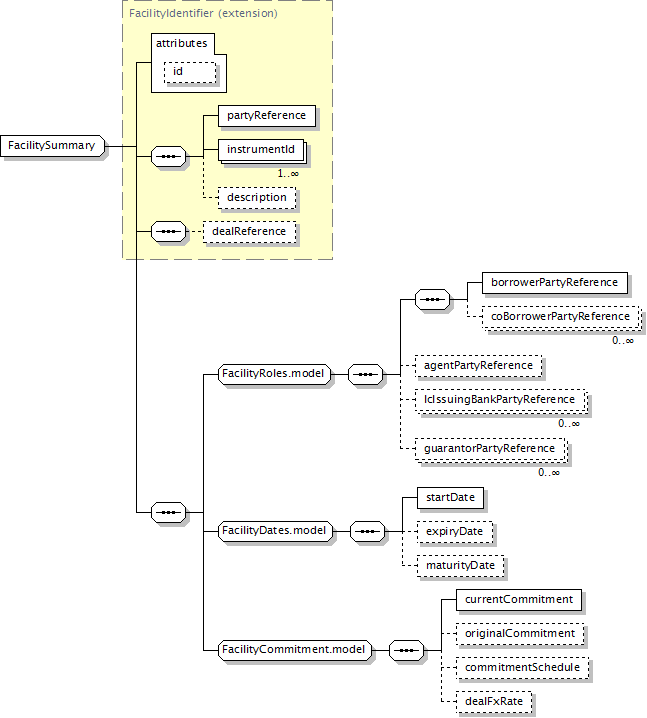

Component Diagram
XML Representation Summary
<...

id
 =
xsd:ID

>

Content:
partyReference, instrumentId+, description?, dealReference?, borrowerPartyReference, coBorrowerPartyReference*, agentPartyReference?, lcIssuingBankPartyReference*, guarantorPartyReference*, startDate, expiryDate?, maturityDate?, currentCommitment, originalCommitment?, commitmentSchedule?, dealFxRate?
</...>
Content Model Elements (16):
agentPartyReference (defined in FacilityRoles.model group),
borrowerPartyReference (defined in FacilityRoles.model group),
coBorrowerPartyReference,
commitmentSchedule (defined in FacilityCommitment.model group),
currentCommitment,
dealFxRate,
dealReference (defined in FacilityIdentifier complexType),
description (defined in IdentifiedAssetWithParty complexType),
expiryDate (defined in FacilityDates.model group),
guarantorPartyReference (defined in FacilityRoles.model group),
instrumentId (defined in IdentifiedAssetWithParty complexType),
lcIssuingBankPartyReference,
maturityDate (defined in FacilityDates.model group),
originalCommitment,
partyReference (defined in IdentifiedAssetWithParty complexType),
startDate (defined in FacilityDates.model group)
Known Direct Subtypes (1):
AbstractFacility
Known Indirect Subtypes (4):
DelayedDraw, LetterOfCreditFacility, Revolver, TermLoan
All Direct / Indirect Based Elements (6):
delayedDraw, facilityGroup, facilitySummary, letterOfCreditFacility, revolver, termLoan
Known Usage Locations
Annotation
A short form of a facility.
Type Definition Detail
Type Derivation Tree
Asset (extension)
  IdentifiedAssetWithParty (extension)
      FacilityIdentifier (extension)
          FacilitySummary
XML Source (w/o annotations (4); see within schema source)
<xsd:complexType name="FacilitySummary">
<xsd:complexContent>
<xsd:extension base="FacilityIdentifier">
<xsd:sequence>
<xsd:group ref="FacilityRoles.model"/>
<xsd:group ref="FacilityDates.model"/>
<xsd:group ref="FacilityCommitment.model"/>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
