complexType "IdentifiedAssetWithParty"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 1 attribute, 3 elements
Defined:
globally in fpml-loan-5-13.xsd; see XML source
Includes:
definitions of 3 elements
Used:
at 2 locations

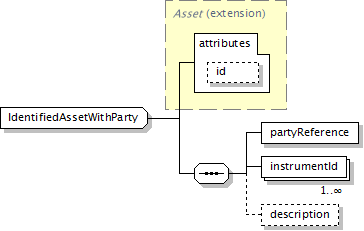

Component Diagram
XML Representation Summary
<...

id
 =
xsd:ID

>

Content:
partyReference, instrumentId+, description?
</...>
Content Model Elements (3):
description (defined in IdentifiedAssetWithParty complexType),
instrumentId (defined in IdentifiedAssetWithParty complexType),
partyReference (defined in IdentifiedAssetWithParty complexType)
Known Direct Subtypes (2):
DealIdentifier, FacilityIdentifier
Known Indirect Subtypes (8):
AbstractFacility, Deal, DealSummary, DelayedDraw, FacilitySummary, LetterOfCreditFacility, Revolver, TermLoan
All Direct / Indirect Based Elements (14):
deal (in dealStatement),
deal (in loanLegalActionStatement),
dealIdentifier (defined in DealDetails.model group),
dealIdentifier (in applicableAssets),
dealSummary,
delayedDraw,
facilityGroup,
facilityIdentifier (defined in FacilityDetails.model group),
facilityIdentifier (in applicableAssets),
facilityIdentifier (in outstandingContractsStatement),
facilitySummary,
letterOfCreditFacility,
revolver,
termLoan
Known Usage Locations
Annotation
An extension of IdentifiedAsset to include PartyAndAccountReferences.model.
Type Definition Detail
Type Derivation Tree
Asset (extension)
  IdentifiedAssetWithParty
XML Source (w/o annotations (4); see within schema source)
<xsd:complexType name="IdentifiedAssetWithParty">
<xsd:complexContent>
<xsd:extension base="Asset">
<xsd:sequence>
<xsd:element name="partyReference" type="PartyReference"/>
<xsd:element maxOccurs="unbounded" name="instrumentId" type="InstrumentId"/>
<xsd:element minOccurs="0" name="description" type="NonEmptyNormalizedString"/>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 3/3)
description
Type:
NonEmptyNormalizedString, simple content
Long name of the underlying asset.
Simple Content
xsd:normalizedString
minLength:
1
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="description" type="NonEmptyNormalizedString"/>
instrumentId
Type:
InstrumentId, simple content
Identification of the underlying asset, using public and/or private identifiers.
Simple Content
xsd:normalizedString
maxLength:
255
minLength:
1
XML Source (w/o annotations (1); see within schema source)
<xsd:element maxOccurs="unbounded" name="instrumentId" type="InstrumentId"/>
partyReference
Type:
PartyReference, empty content
Reference to a party.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="partyReference" type="PartyReference"/>
