complexType "LoanAcknowledgement"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 3 attributes, 9 elements
Defined:
globally in fpml-loan-5-13.xsd; see XML source
Includes:
definitions of 2 elements
Used:
at 1 location

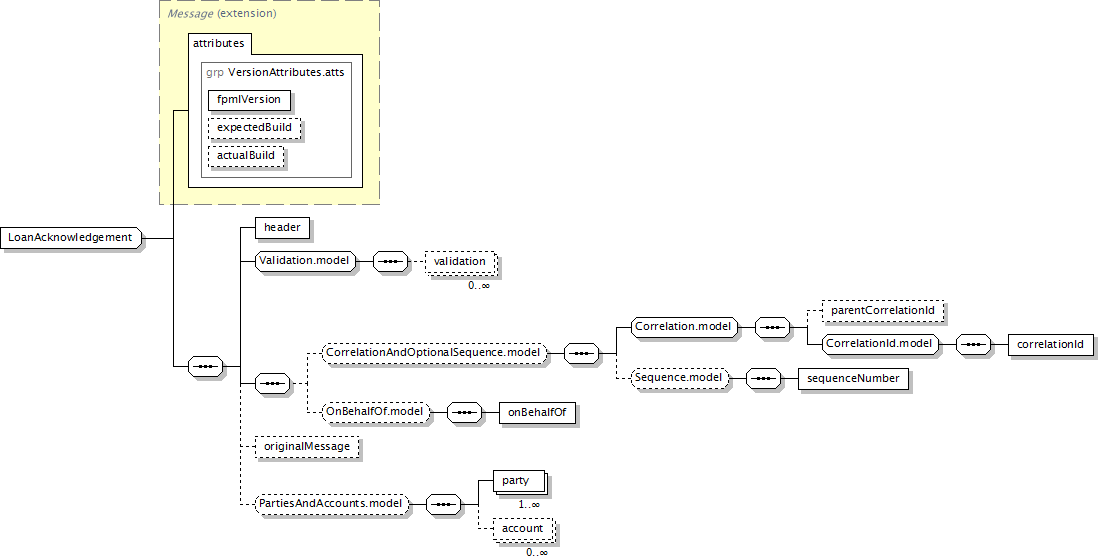

Component Diagram
XML Representation Summary
<...

fpmlVersion
 =
xsd:token
expectedBuild
 =
xsd:positiveInteger
actualBuild
 =
"4"

>

Content:
header, validation*, (parentCorrelationId?, correlationId, sequenceNumber?)?, onBehalfOf?, originalMessage?, (party+, account*)?
</...>
Content Model Elements (9):
account,
correlationId,
header (in loanNotificationAcknowledgement),
onBehalfOf (defined in OnBehalfOf.model group),
originalMessage (in loanNotificationAcknowledgement),
parentCorrelationId,
party (defined in PartiesAndAccounts.model group),
sequenceNumber (defined in Sequence.model group),
validation
Known Direct Subtypes (1):
LoanNotificationAcknowledgement
All Direct / Indirect Based Elements (1):
loanNotificationAcknowledgement
Known Usage Locations
Annotation
A base type to extend the FpML basic 'message' type, similar in function to the 'response' message, but specific to the needs of the loan asset class.
Type Definition Detail
Type Derivation Tree
Document (extension)
  Message (extension)
      LoanAcknowledgement
XML Source (w/o annotations (1); see within schema source)
<xsd:complexType name="LoanAcknowledgement">
<xsd:complexContent>
<xsd:extension base="Message">
<xsd:sequence>
<xsd:element name="header" type="ResponseMessageHeader"/>
<xsd:group ref="Validation.model"/>
<xsd:sequence>
<xsd:group minOccurs="0" ref="CorrelationAndOptionalSequence.model"/>
<xsd:group minOccurs="0" ref="OnBehalfOf.model"/>
</xsd:sequence>
<xsd:element minOccurs="0" name="originalMessage" type="UnprocessedElementWrapper"/>
<xsd:group minOccurs="0" ref="PartiesAndAccounts.model"/>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 2/9)
header
Type:
ResponseMessageHeader, complex content
XML Source (see within schema source)
<xsd:element name="header" type="ResponseMessageHeader"/>
originalMessage
Type:
UnprocessedElementWrapper, complex content
XML Source (see within schema source)
<xsd:element minOccurs="0" name="originalMessage" type="UnprocessedElementWrapper"/>
