complexType "LoanNotificationAcknowledgement"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 3 attributes, 11 elements
Defined:
globally in fpml-loan-5-13.xsd; see XML source
Used:
at 1 location

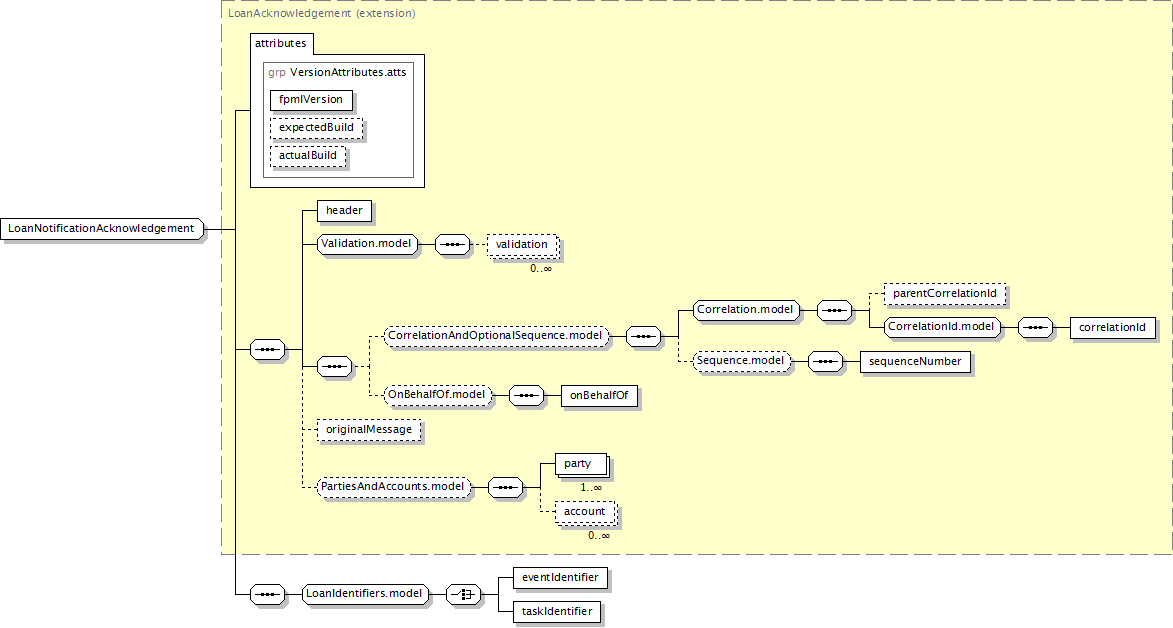

Component Diagram
XML Representation Summary
<...

fpmlVersion
 =
xsd:token
expectedBuild
 =
xsd:positiveInteger
actualBuild
 =
"4"

>

Content:
header, validation*, (parentCorrelationId?, correlationId, sequenceNumber?)?, onBehalfOf?, originalMessage?, (party+, account*)?, (eventIdentifier | taskIdentifier)
</...>
Content Model Elements (11):
account,
correlationId,
eventIdentifier (defined in LoanIdentifiers.model group),
header (in loanNotificationAcknowledgement),
onBehalfOf (defined in OnBehalfOf.model group),
originalMessage (in loanNotificationAcknowledgement),
parentCorrelationId,
party (defined in PartiesAndAccounts.model group),
sequenceNumber (defined in Sequence.model group),
taskIdentifier (defined in LoanIdentifiers.model group),
validation
All Direct / Indirect Based Elements (1):
loanNotificationAcknowledgement
Known Usage Locations
Annotation
A message used to acknowledge a loan notification.
Type Definition Detail
Type Derivation Tree
Document (extension)
  Message (extension)
      LoanAcknowledgement (extension)
          LoanNotificationAcknowledgement
XML Source (w/o annotations (1); see within schema source)
<xsd:complexType name="LoanNotificationAcknowledgement">
<xsd:complexContent>
<xsd:extension base="LoanAcknowledgement">
<xsd:sequence>
<xsd:group ref="LoanIdentifiers.model"/>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
