complexType "LoanAllocation"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 1 attribute, 13 elements
Defined:
globally in fpml-loan-5-13.xsd; see XML source
Used:
at 1 location

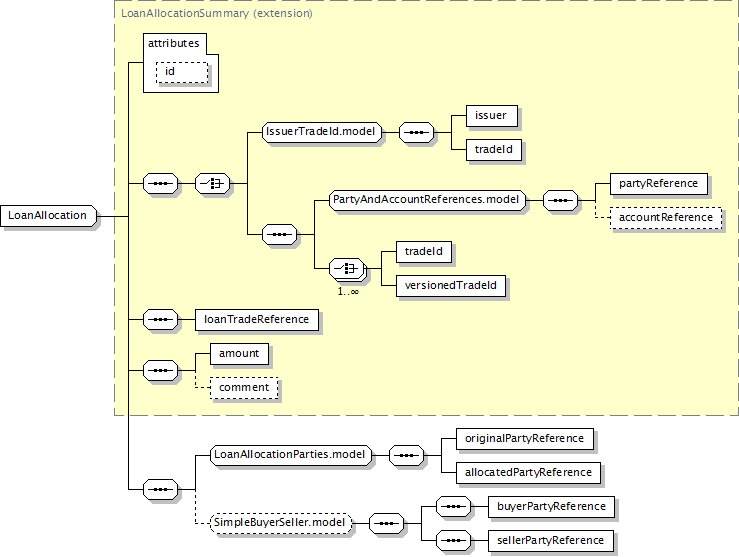

Component Diagram
XML Representation Summary
<...

id
 =
xsd:ID

>

Content:
((issuer, tradeId) | (partyReference, accountReference?, (tradeId | versionedTradeId)+)), loanTradeReference, amount, comment?, originalPartyReference, allocatedPartyReference, (buyerPartyReference, sellerPartyReference)?
</...>
Content Model Elements (13):
accountReference (defined in PartyAndAccountReferences.model group),
allocatedPartyReference,
amount (defined in LoanAllocationSummary complexType),
buyerPartyReference (in allocation in loanAllocationNotification),
comment (defined in LoanAllocationSummary complexType),
issuer (defined in IssuerTradeId.model group),
loanTradeReference (defined in LoanAllocationIdentifier complexType),
originalPartyReference,
partyReference (defined in PartyAndAccountReferences.model group),
sellerPartyReference (in allocation in loanAllocationNotification),
tradeId (defined in IssuerTradeId.model group),
tradeId (defined in TradeIdentifier complexType),
versionedTradeId
All Direct / Indirect Based Elements (1):
allocation  (in loanAllocationNotification)
Known Usage Locations
Annotation
A structure that defines party-to-party loan allocation information. This structure contains the allocated party details.
Type Definition Detail
Type Derivation Tree
TradeIdentifier (extension)
  LoanAllocationIdentifier (extension)
      LoanAllocationSummary (extension)
          LoanAllocation
XML Source (w/o annotations (1); see within schema source)
<xsd:complexType abstract="false" name="LoanAllocation">
<xsd:complexContent>
<xsd:extension base="LoanAllocationSummary">
<xsd:sequence>
<xsd:group ref="LoanAllocationParties.model"/>
<xsd:group minOccurs="0" ref="SimpleBuyerSeller.model"/>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
