complexType "LoanAllocationIdentifier"

Namespace:	http://www.fpml.org/FpML-5/confirmation
Content:	complex, 1 attribute, 7 elements
Defined:	globally in fpml-loan-5-13.xsd; see XML source
Includes:	definition of 1 element
Used:	at 2 locations

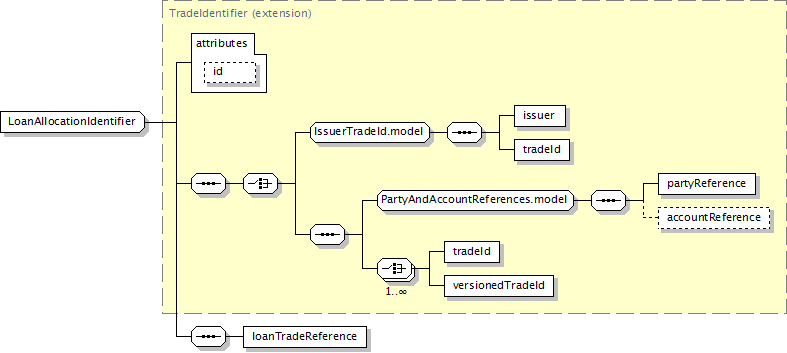

Component Diagram

XML Representation Summary

<...

xsd:ID

Content:

((issuer, tradeId) | (partyReference, accountReference?, (tradeId | versionedTradeId)+)), loanTradeReference

</...>

Content Model Elements (7):

accountReference (defined in PartyAndAccountReferences.model group),

issuer (defined in IssuerTradeId.model group),

loanTradeReference (defined in LoanAllocationIdentifier complexType),

partyReference (defined in PartyAndAccountReferences.model group),

tradeId (defined in IssuerTradeId.model group),

tradeId (defined in TradeIdentifier complexType),

versionedTradeId

Known Direct Subtypes (1):

LoanAllocationSummary

Known Indirect Subtypes (1):

LoanAllocation

All Direct / Indirect Based Elements (3):

allocation (in loanAllocationNotification),

allocationId,

allocationSummary

Known Usage Locations

In derivations of other global types (1):

LoanAllocationSummary (as extension base)
As direct type of elements (1):

allocationId

Annotation

A structure that contains sender-specific and optional shared loan allocation identifiers.

Type Definition Detail

Type Derivation Tree

TradeIdentifier (extension)

LoanAllocationIdentifier

XML Source (w/o annotations (2); see within schema source)

<xsd:complexType name="LoanAllocationIdentifier">

<xsd:complexContent>

<xsd:extension base="TradeIdentifier">

<xsd:sequence>

<xsd:element name="loanTradeReference" type="LoanTradeReference"/>

</xsd:sequence>

</xsd:extension>

</xsd:complexContent>

</xsd:complexType>

Content Element Detail (all declarations; defined within this component only; 1/7)

loanTradeReference

Type:

LoanTradeReference, empty content

Reference to the original loan trade.

XML Source (w/o annotations (1); see within schema source)

<xsd:element name="loanTradeReference" type="LoanTradeReference"/>
