complexType "LoanBulkServicingNotification"

Namespace:	http://www.fpml.org/FpML-5/confirmation
Content:	complex, 3 attributes, 25 elements
Defined:	globally in fpml-loan-5-13.xsd; see XML source
Includes:	definitions of 4 elements
Used:	at 1 location

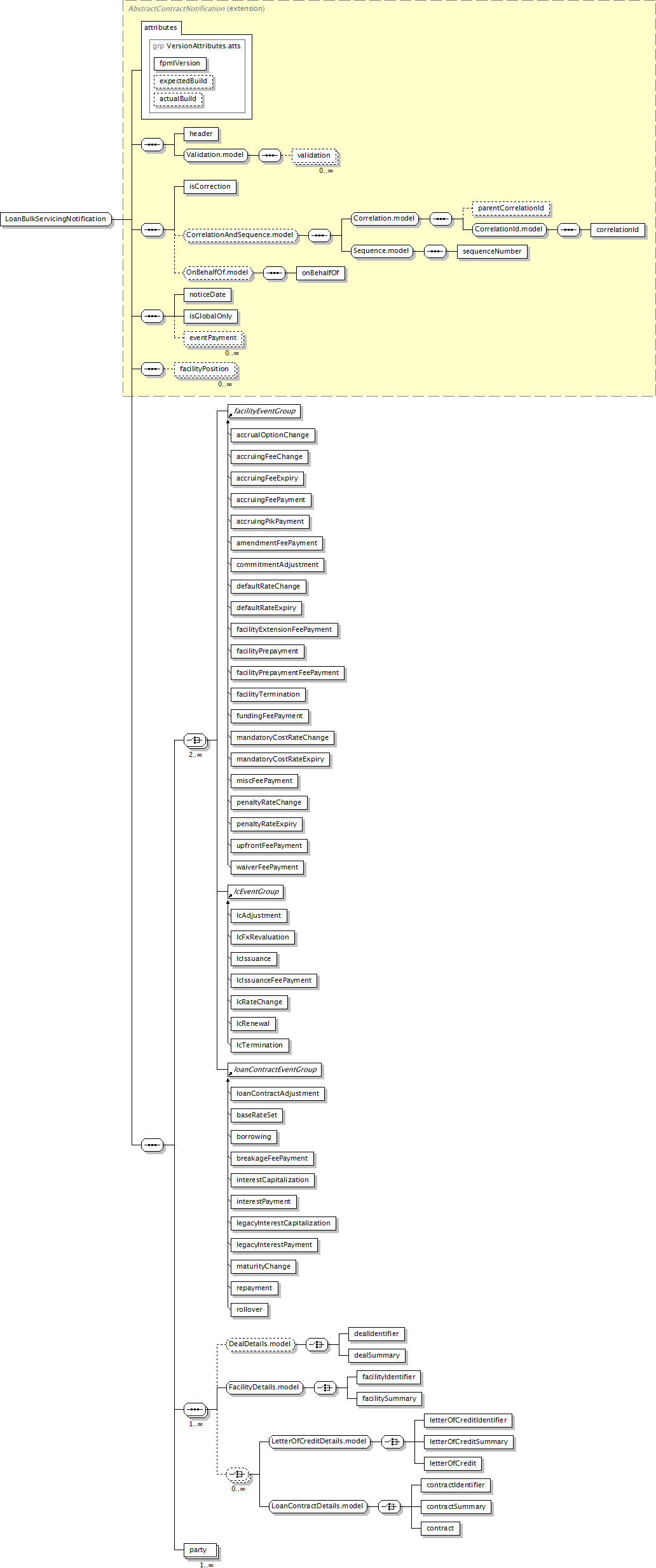

Component Diagram

XML Representation Summary

<...

fpmlVersion	=	xsd:token
expectedBuild	=	xsd:positiveInteger
actualBuild	=	"4"

Content:

</...>

Content Model Elements (25):

contract (defined in LoanContractDetails.model group),

contractIdentifier,

contractSummary,

correlationId,

dealIdentifier (defined in DealDetails.model group),

dealSummary,

eventPayment,

facilityEventGroup,

facilityIdentifier (defined in FacilityDetails.model group),

facilityPosition (defined in AbstractContractNotification complexType),

facilitySummary,

header (defined in RequestMessage complexType),

isCorrection,

isGlobalOnly,

lcEventGroup,

letterOfCredit (defined in LetterOfCreditDetails.model group),

letterOfCreditIdentifier,

letterOfCreditSummary,

loanContractEventGroup,

noticeDate (defined in AbstractServicingNotification complexType),

onBehalfOf (defined in OnBehalfOf.model group),

parentCorrelationId,

party (in loanBulkServicingNotification),

sequenceNumber (defined in Sequence.model group),

validation

All Direct / Indirect Based Elements (1):

loanBulkServicingNotification

Known Usage Locations

As direct type of elements (1):

loanBulkServicingNotification

Annotation

A loan servicing notification used to communicate multiple business events, within a single notification.

Type Definition Detail

Type Derivation Tree

Document (extension)

Message (extension)

RequestMessage (extension)

CorrectableRequestMessage (extension)

AbstractServicingNotification (extension)

AbstractContractNotification (extension)

LoanBulkServicingNotification

XML Source (w/o annotations (3); see within schema source)

<xsd:complexType name="LoanBulkServicingNotification">

<xsd:complexContent>

<xsd:extension base="AbstractContractNotification">

<xsd:sequence>

<xsd:choice maxOccurs="unbounded" minOccurs="2">

<xsd:element ref="facilityEventGroup"/>

<xsd:element ref="lcEventGroup"/>

<xsd:element ref="loanContractEventGroup"/>

</xsd:choice>

<xsd:sequence maxOccurs="unbounded">

<xsd:group minOccurs="0" ref="DealDetails.model"/>

<xsd:group ref="FacilityDetails.model"/>

<xsd:choice maxOccurs="unbounded" minOccurs="0">

<xsd:group ref="LetterOfCreditDetails.model"/>

<xsd:group ref="LoanContractDetails.model"/>

</xsd:choice>

</xsd:sequence>

<xsd:element maxOccurs="unbounded" name="party" type="Party"/>

</xsd:sequence>

</xsd:extension>

</xsd:complexContent>

</xsd:complexType>

Content Element Detail (all declarations; defined within this component only; 4/25)

facilityEventGroup

Type:	AbstractFacilityEvent, complex content
Abstract:	(may not be used directly in instance XML documents)
Subst.Gr:	substituted with 21 elements

XML Source (see within schema source)

<xsd:element ref="facilityEventGroup"/>

lcEventGroup

Type:	AbstractLcEvent, complex content
Abstract:	(may not be used directly in instance XML documents)
Subst.Gr:	substituted with 7 elements

XML Source (see within schema source)

<xsd:element ref="lcEventGroup"/>

loanContractEventGroup

Type:	AbstractLoanServicingEvent, complex content
Abstract:	(may not be used directly in instance XML documents)
Subst.Gr:	substituted with 11 elements

XML Source (see within schema source)

<xsd:element ref="loanContractEventGroup"/>

party

Type:

Party, complex content

A legal entity or a subdivision of a legal entity.

XML Source (w/o annotations (1); see within schema source)

<xsd:element maxOccurs="unbounded" name="party" type="Party"/>
