complexType "AbstractLoanServicingEvent"

Namespace:	http://www.fpml.org/FpML-5/confirmation
Content:	complex, 11 elements
Abstract:	(cannot be assigned directly to elements used in instance XML documents)
Defined:	globally in fpml-loan-5-13.xsd; see XML source
Includes:	definitions of 2 elements
Used:	at 5 locations

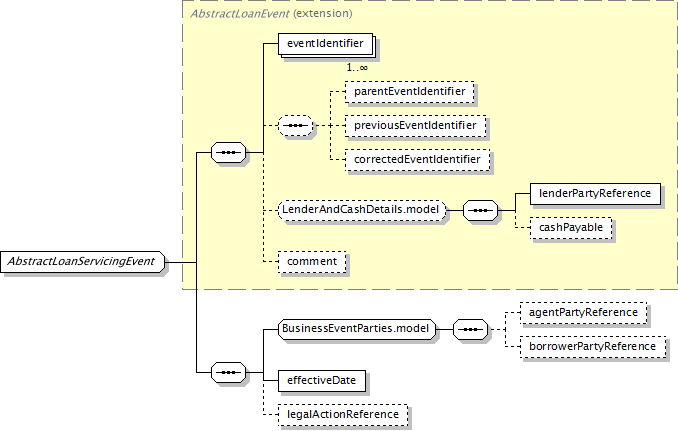

Component Diagram

XML Representation Summary

<...>

Content:

eventIdentifier+, (parentEventIdentifier?, previousEventIdentifier?, correctedEventIdentifier?)?, (lenderPartyReference, cashPayable?)?, comment?, agentPartyReference?, borrowerPartyReference?, effectiveDate, legalActionReference?

</...>

Content Model Elements (11):

agentPartyReference (defined in BusinessEventParties.model group),

borrowerPartyReference (defined in BusinessEventParties.model group),

cashPayable,

comment (defined in AbstractLoanEvent complexType),

correctedEventIdentifier,

effectiveDate (defined in AbstractLoanServicingEvent complexType),

eventIdentifier (defined in AbstractLoanEvent complexType),

legalActionReference (defined in AbstractLoanServicingEvent complexType),

lenderPartyReference (defined in LenderAndCashDetails.model group),

parentEventIdentifier,

previousEventIdentifier

Known Direct Subtypes (4):

AbstractFacilityEvent, AbstractLcEvent, AbstractLoanContractEvent, Rollover

Known Indirect Subtypes (42):

AbstractFacilityContractEvent, AbstractFacilityPaymentEvent, AbstractFacilityRateChangeEvent, AbstractLoanContractPaymentEvent, AccrualOptionChange, AccruingFeeChange, AccruingFeeExpiry, AccruingFeePayment, AccruingPikPayment, AmendmentFeePayment, Borrowing, BreakageFeePayment, CommitmentAdjustment, DefaultRateChange, DefaultRateExpiry, FacilityExtensionFeePayment, FacilityPrepayment, FacilityPrepaymentFeePayment, FacilityTermination, FundingFeePayment, InterestCapitalization, LcAdjustment, LcFxRevaluation, LcIssuance, LcIssuanceFeePayment, LcRateChange, LcRenewal, LcTermination, LegacyInterestCapitalization, LegacyLoanInterestPayment, LoanContractAdjustment, LoanContractBaseRateSet, LoanContractMaturityChange, LoanInterestPayment, MandatoryCostRateChange, MandatoryCostRateExpiry, MiscFeePayment, PenaltyRateChange, PenaltyRateExpiry, Repayment, UpfrontFeePayment, WaiverFeePayment

All Direct / Indirect Based Elements (43):

commitmentAdjustment,

commitmentAdjustment (in economicBenefit),

defaultRateChange,

defaultRateExpiry,

facilityEventGroup,

facilityExtensionFeePayment,

facilityPrepayment,

facilityPrepaymentFeePayment,

facilityTermination,

fundingFeePayment,

interestCapitalization,

lcIssuanceFeePayment,

lcRateChange,

lcRenewal,

lcTermination,

legacyInterestCapitalization,

legacyInterestPayment,

loanContractAdjustment,

loanContractEventGroup,

mandatoryCostRateChange,

mandatoryCostRateExpiry,

Known Usage Locations

In derivations of other global types (4):

AbstractFacilityEvent (as extension base),

AbstractLcEvent (as extension base),

AbstractLoanContractEvent (as extension base),

Rollover (as extension base)
As direct type of elements (1):

loanContractEventGroup

Annotation

An abstract base type defining common features of a syndicated loan servicing business event. Such events are originated by the borrower and are required to be communicated to the lender syndicate by agents.

Type Definition Detail

Type Derivation Tree

AbstractLoanEvent (extension)

AbstractLoanServicingEvent

XML Source (w/o annotations (4); see within schema source)

<xsd:complexType abstract="true" name="AbstractLoanServicingEvent">

<xsd:complexContent>

<xsd:extension base="AbstractLoanEvent">

<xsd:sequence>

<xsd:group ref="BusinessEventParties.model"/>

<xsd:element name="effectiveDate" type="xsd:date"/>

<xsd:element minOccurs="0" name="legalActionReference" type="LoanLegalActionReference"/>

</xsd:sequence>

</xsd:extension>

</xsd:complexContent>

</xsd:complexType>

Content Element Detail (all declarations; defined within this component only; 2/11)

effectiveDate

Type:

xsd:date, predefined, simple content

The date on which the associated business event is effective.

XML Source (w/o annotations (1); see within schema source)

<xsd:element name="effectiveDate" type="xsd:date"/>

legalActionReference

Type:

LoanLegalActionReference, empty content

Reference to a legal action.

XML Source (w/o annotations (1); see within schema source)

<xsd:element minOccurs="0" name="legalActionReference" type="LoanLegalActionReference"/>
