complexType "LoanLegalAction"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 1 attribute, 10 elements
Defined:
globally in fpml-loan-5-13.xsd; see XML source
Includes:
definitions of 3 elements
Used:
at 2 locations

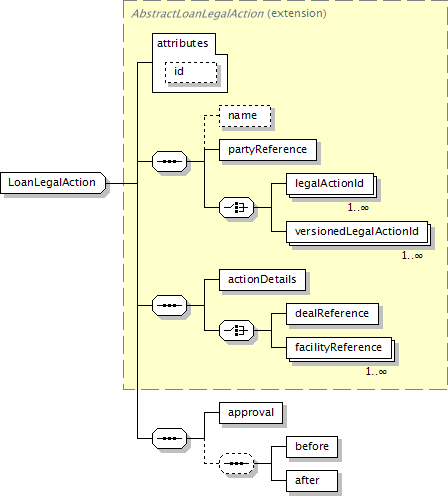

Component Diagram
XML Representation Summary
<...

id
 =
xsd:ID

>

Content:
name?, partyReference, (legalActionId+ | versionedLegalActionId+), actionDetails, (dealReference | facilityReference+), approval, (before, after)?
</...>
Content Model Elements (10):
actionDetails,
after,
approval (defined in LoanLegalAction complexType),
before,
dealReference (defined in LoanLegalActionSummary complexType),
facilityReference (defined in LoanLegalActionSummary complexType),
legalActionId (defined in LegalActionIdentifier complexType),
name (defined in LegalActionIdentifier complexType),
partyReference (defined in LegalActionIdentifier complexType),
versionedLegalActionId
All Direct / Indirect Based Elements (2):
legalAction (in loanLegalActionNotification),
legalAction (in loanLegalActionStatement)
Known Usage Locations
Annotation
A syndicated bank loan legal action definition.
Type Definition Detail
Type Derivation Tree
LegalActionIdentifier (extension)
  LoanLegalActionSummary (extension)
      AbstractLoanLegalAction (extension)
          LoanLegalAction
XML Source (w/o annotations (4); see within schema source)
<xsd:complexType name="LoanLegalAction">
<xsd:complexContent>
<xsd:extension base="AbstractLoanLegalAction">
<xsd:sequence>
<xsd:element name="approval" type="ActionApproval"/>
<xsd:sequence minOccurs="0">
<xsd:element name="before" type="LoanLegalStructureBefore"/>
<xsd:element name="after" type="LoanLegalStructureAfter"/>
</xsd:sequence>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 3/10)
after
Type:
LoanLegalStructureAfter, complex content
Structure to describe the asset after the legal action.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="after" type="LoanLegalStructureAfter"/>
approval
Type:
ActionApproval, complex content
A structure to describe the approval of the legal action, including votes required for approval and the approval deadline date.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="approval" type="ActionApproval"/>
before
Type:
LoanLegalStructureBefore, complex content
Structure to describe the asset before the legal action.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="before" type="LoanLegalStructureBefore"/>
