element <after> (local)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
LoanLegalStructureAfter
Content:
complex, 4 elements
Defined:
locally within LoanLegalAction complexType in fpml-loan-5-13.xsd; see XML source

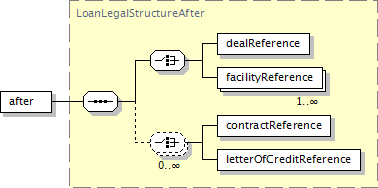

Component Diagram
XML Representation Summary
<after>

Content:
(dealReference | facilityReference+), (contractReference | letterOfCreditReference)*
</after>
Content model elements (4):
contractReference (in after),
dealReference (in after),
facilityReference (in after),
letterOfCreditReference (in after)
Included in content model of elements (2):
legalAction (in loanLegalActionNotification),
legalAction (in loanLegalActionStatement)
Annotation
Structure to describe the asset after the legal action.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="after" type="LoanLegalStructureAfter"/>
