complexType "LoanTradeNotification"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 3 attributes, 21 elements
Defined:
globally in fpml-loan-5-13.xsd; see XML source
Includes:
definitions of 3 elements
Used:
at 1 location

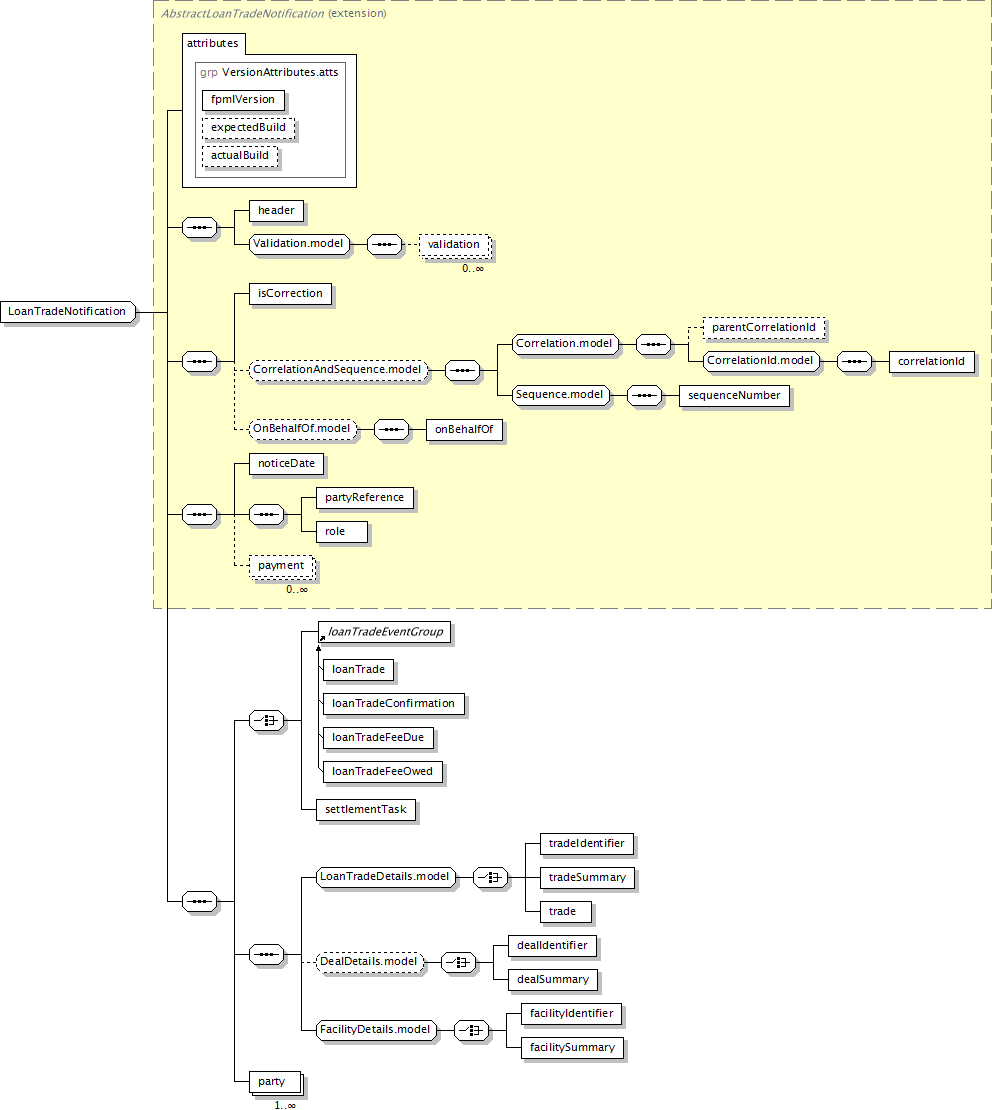

Component Diagram
XML Representation Summary
<...

fpmlVersion
 =
xsd:token
expectedBuild
 =
xsd:positiveInteger
actualBuild
 =
"4"

>

Content:
header, validation*, isCorrection, (parentCorrelationId?, correlationId, sequenceNumber)?, onBehalfOf?, noticeDate, partyReference, role, payment*, (loanTradeEventGroup | settlementTask), (tradeIdentifier | tradeSummary | trade), (dealIdentifier | dealSummary)?, (facilityIdentifier | facilitySummary), party+
</...>
Content Model Elements (21):
correlationId,
dealIdentifier (defined in DealDetails.model group),
dealSummary,
facilityIdentifier (defined in FacilityDetails.model group),
facilitySummary,
header (defined in RequestMessage complexType),
isCorrection,
loanTradeEventGroup,
noticeDate (in loanTradeNotification),
onBehalfOf (defined in OnBehalfOf.model group),
parentCorrelationId,
party (in loanTradeNotification),
partyReference (in loanTradeNotification),
payment (in loanTradeNotification),
role (in loanTradeNotification),
sequenceNumber (defined in Sequence.model group),
settlementTask (in loanTradeNotification),
trade (in loanTradeNotification),
tradeIdentifier (in loanTradeNotification),
tradeSummary (in loanTradeNotification),
validation
All Direct / Indirect Based Elements (1):
loanTradeNotification
Known Usage Locations
Annotation
A loan servicing notification used to communicate details to establish a master trade, from counterparty to counterparty.
Type Definition Detail
Type Derivation Tree
Document (extension)
  Message (extension)
      RequestMessage (extension)
          CorrectableRequestMessage (extension)
              AbstractLoanTradeNotification (extension)
                  LoanTradeNotification
XML Source (w/o annotations (5); see within schema source)
<xsd:complexType name="LoanTradeNotification">
<xsd:complexContent>
<xsd:extension base="AbstractLoanTradeNotification">
<xsd:sequence>
<xsd:choice>
<xsd:element ref="loanTradeEventGroup"/>
<xsd:element name="settlementTask" type="LoanTradeSettlementTask"/>
</xsd:choice>
<xsd:sequence>
<xsd:group ref="LoanTradeDetails.model"/>
<xsd:group minOccurs="0" ref="DealDetails.model"/>
<xsd:group ref="FacilityDetails.model"/>
</xsd:sequence>
<xsd:element maxOccurs="unbounded" name="party" type="Party"/>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 3/21)
loanTradeEventGroup
Type:
AbstractLoanTradeEvent, complex content
Abstract:
(may not be used directly in instance XML documents)
Subst.Gr:
substituted with 4 elements
XML Source (see within schema source)
<xsd:element ref="loanTradeEventGroup"/>
party
Type:
Party, complex content
A legal entity or a subdivision of a legal entity.
XML Source (w/o annotations (1); see within schema source)
<xsd:element maxOccurs="unbounded" name="party" type="Party"/>
settlementTask
Type:
LoanTradeSettlementTask, complex content
XML Source (see within schema source)
<xsd:element name="settlementTask" type="LoanTradeSettlementTask"/>
