complexType "AdjustableRelativeOrPeriodicDates"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 1 attribute, 3 elements
Defined:
globally in fpml-shared-5-13.xsd; see XML source
Includes:
definitions of 1 attribute, 3 elements
Used:
at 4 locations

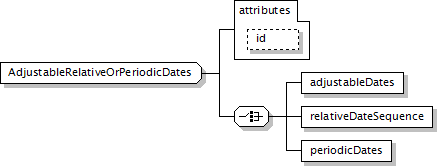

Component Diagram
XML Representation Summary
<...

id
 =
xsd:ID

>

Content:
adjustableDates | relativeDateSequence | periodicDates
</...>
Content Model Elements (3):
adjustableDates (defined in AdjustableRelativeOrPeriodicDates complexType),
periodicDates (defined in AdjustableRelativeOrPeriodicDates complexType),
relativeDateSequence (defined in AdjustableRelativeOrPeriodicDates complexType)
All Direct / Indirect Based Elements (4):
calculationDates (defined in CalculatedAmount complexType),
calculationDates (defined in LegAmount complexType),
dividendValuationDates,
valuationDates (defined in EquityValuation complexType)
Known Usage Locations
XML Source (w/o annotations (2); see within schema source)
<xsd:complexType name="AdjustableRelativeOrPeriodicDates">
<xsd:choice>
<xsd:element name="adjustableDates" type="AdjustableDates"/>
<xsd:element name="relativeDateSequence" type="RelativeDateSequence"/>
<xsd:element name="periodicDates" type="PeriodicDates"/>
</xsd:choice>
<xsd:attribute name="id" type="xsd:ID"/>
</xsd:complexType>
Attribute Detail (all declarations; defined within this component only; 1/1)
id
Type:
xsd:ID, predefined
Use:
optional
XML Source (see within schema source)
<xsd:attribute name="id" type="xsd:ID"/>
Content Element Detail (all declarations; defined within this component only; 3/3)
adjustableDates
Type:
AdjustableDates, complex content
A series of dates that shall be subject to adjustment if they would otherwise fall on a day that is not a business day in the specified business centers, together with the convention for adjusting the date.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="adjustableDates" type="AdjustableDates"/>
periodicDates
Type:
PeriodicDates, complex content
XML Source (see within schema source)
<xsd:element name="periodicDates" type="PeriodicDates"/>
relativeDateSequence
Type:
RelativeDateSequence, complex content
A series of dates specified as some offset to other dates (the anchor dates) which can
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="relativeDateSequence" type="RelativeDateSequence"/>
