complexType "AdjustableDates"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 1 attribute, 3 elements
Defined:
globally in fpml-shared-5-13.xsd; see XML source
Includes:
definitions of 1 attribute, 3 elements
Used:
at 14 locations

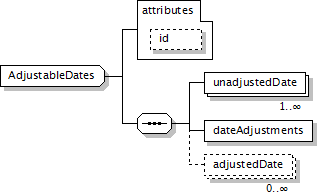

Component Diagram
XML Representation Summary
<...

id
 =
xsd:ID

>

Content:
unadjustedDate+, dateAdjustments, adjustedDate*
</...>
Content Model Elements (3):
adjustedDate (defined in AdjustableDates complexType),
dateAdjustments (defined in AdjustableDates complexType),
unadjustedDate (defined in AdjustableDates complexType)
All Direct / Indirect Based Elements (14):
adjustableDates (defined in AdjustableDatesOrRelativeDateOffset complexType),
adjustableDates (defined in AdjustableOrRelativeDates complexType),
adjustableDates (defined in AdjustableRelativeOrPeriodicDates complexType),
adjustableDates (defined in AdjustableRelativeOrPeriodicDates2 complexType),
adjustableDates (in cashSettlementPaymentDate),
calculationDates (defined in CommodityCalculationPeriods.model group),
calculationPeriods (defined in CommodityAsian.model group),
calculationPeriods (defined in CommodityCalculationPeriods.model group),
calculationPeriods (in commodityBasketOption),
fxFixingSchedule,
fxObservationDates,
periods,
pricingDates (defined in CommodityPricingDates complexType),
valuationDates (defined in CommodityValuationDates complexType)
Known Usage Locations
Annotation
A type for defining a series of dates that shall be subject to adjustment if they would otherwise fall on a day that is not a business day in the specified business centers, together with the convention for adjusting the dates.
XML Source (w/o annotations (4); see within schema source)
<xsd:complexType name="AdjustableDates">
<xsd:sequence>
<xsd:element maxOccurs="unbounded" name="unadjustedDate" type="IdentifiedDate"/>
<xsd:element name="dateAdjustments" type="BusinessDayAdjustments"/>
<xsd:element maxOccurs="unbounded" minOccurs="0" name="adjustedDate" type="IdentifiedDate"/>
</xsd:sequence>
<xsd:attribute name="id" type="xsd:ID" use="optional"/>
</xsd:complexType>
Attribute Detail (all declarations; defined within this component only; 1/1)
id
Type:
xsd:ID, predefined
Use:
optional
XML Source (see within schema source)
<xsd:attribute name="id" type="xsd:ID" use="optional"/>
Content Element Detail (all declarations; defined within this component only; 3/3)
adjustedDate
Type:
IdentifiedDate, simple content
The date once the adjustment has been performed. (Note that this date may change if the business center holidays change).
Simple Content
xsd:date
XML Source (w/o annotations (1); see within schema source)
<xsd:element maxOccurs="unbounded" minOccurs="0" name="adjustedDate" type="IdentifiedDate"/>
dateAdjustments
Type:
BusinessDayAdjustments, complex content
The business day convention and financial business centers used for adjusting the date if it would otherwise fall on a day that is not a business dat in the specified business centers.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="dateAdjustments" type="BusinessDayAdjustments"/>
unadjustedDate
Type:
IdentifiedDate, simple content
A date subject to adjustment.
Simple Content
xsd:date
XML Source (w/o annotations (1); see within schema source)
<xsd:element maxOccurs="unbounded" name="unadjustedDate" type="IdentifiedDate"/>
