element <dividendLeg> (local)
Namespace:
http://www.fpml.org/FpML-5/transparency
Type:
DividendLeg
Content:
complex, 1 attribute, 13 elements
Defined:
locally within DividendSwapTransactionSupplement complexType in fpml-dividend-swaps-5-13.xsd; see XML source

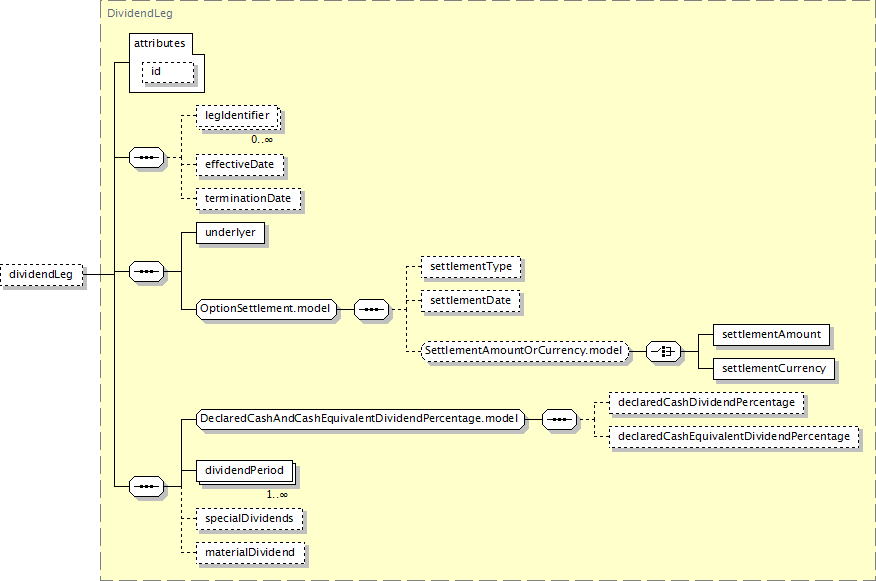

Component Diagram
XML Representation Summary
<dividendLeg

id
 =
xsd:ID

>

Content:
legIdentifier*, effectiveDate?, terminationDate?, underlyer, settlementType?, settlementDate?, (settlementAmount | settlementCurrency)?, declaredCashDividendPercentage?, declaredCashEquivalentDividendPercentage?, dividendPeriod+, specialDividends?, materialDividend?
</dividendLeg>
Content model elements (13):
declaredCashDividendPercentage,
declaredCashEquivalentDividendPercentage,
dividendPeriod,
effectiveDate (defined in DirectionalLeg complexType),
legIdentifier,
materialDividend,
settlementAmount (defined in SettlementAmountOrCurrency.model group),
settlementCurrency (defined in SettlementAmountOrCurrency.model group),
settlementDate (defined in OptionSettlement.model group),
settlementType (defined in OptionSettlement.model group),
specialDividends,
terminationDate (defined in DirectionalLeg complexType),
underlyer (defined in DirectionalLegUnderlyer complexType)
Included in content model of elements (2):
dividendSwapTransactionSupplement,
dividendSwapTransactionSupplement (in dividendSwapOptionTransactionSupplement)
Annotation
Dividend leg.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="dividendLeg" type="DividendLeg"/>
