complexType "DirectionalLegUnderlyer"

Namespace:	http://www.fpml.org/FpML-5/transparency
Content:	complex, 1 attribute, 8 elements
Abstract:	(cannot be assigned directly to elements used in instance XML documents)
Defined:	globally in fpml-eq-shared-5-13.xsd; see XML source
Includes:	definition of 1 element
Used:	at 2 locations

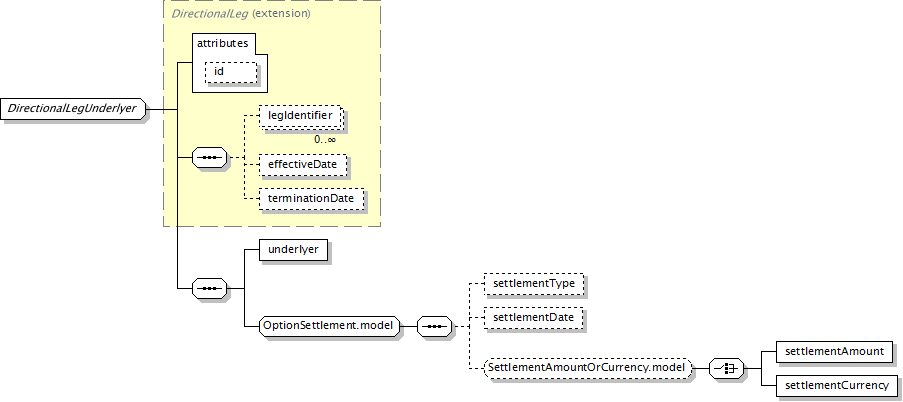

Component Diagram

XML Representation Summary

<...

xsd:ID

Content:

legIdentifier*, effectiveDate?, terminationDate?, underlyer, settlementType?, settlementDate?, (settlementAmount | settlementCurrency)?

</...>

Content Model Elements (8):

effectiveDate (defined in DirectionalLeg complexType),

legIdentifier,

settlementAmount (defined in SettlementAmountOrCurrency.model group),

settlementCurrency (defined in SettlementAmountOrCurrency.model group),

settlementDate (defined in OptionSettlement.model group),

settlementType (defined in OptionSettlement.model group),

terminationDate (defined in DirectionalLeg complexType),

underlyer (defined in DirectionalLegUnderlyer complexType)

Known Direct Subtypes (2):

DirectionalLegUnderlyerValuation, DividendLeg

Known Indirect Subtypes (3):

CorrelationLeg, VarianceLeg, VolatilityLeg

All Direct / Indirect Based Elements (5):

correlationLeg,

dividendLeg,

varianceLeg (in varianceSwapTransactionSupplement in varianceOptionTransactionSupplement),

varianceLeg (in varianceSwapTransactionSupplement),

volatilityLeg

Known Usage Locations

In derivations of other global types (2):

DirectionalLegUnderlyerValuation (as extension base),

DividendLeg (as extension base)

Annotation

An abstract base class for all directional leg types with effective date, termination date, and underlyer where a payer makes a stream of payments of greater than zero value to a receiver.

Type Definition Detail

Type Derivation Tree

Leg (extension)

DirectionalLeg (extension)

DirectionalLegUnderlyer

XML Source (w/o annotations (2); see within schema source)

<xsd:complexType abstract="true" name="DirectionalLegUnderlyer">

<xsd:complexContent>

<xsd:extension base="DirectionalLeg">

<xsd:sequence>

<xsd:element name="underlyer" type="Underlyer"/>

<xsd:group ref="OptionSettlement.model"/>

</xsd:sequence>

</xsd:extension>

</xsd:complexContent>

</xsd:complexType>

Content Element Detail (all declarations; defined within this component only; 1/8)

underlyer

Type:

Underlyer, complex content

Specifies the underlyer of the leg.

XML Source (w/o annotations (1); see within schema source)

<xsd:element name="underlyer" type="Underlyer"/>
