complexType "AdjustableRelativeOrPeriodicDates"
Namespace:
http://www.fpml.org/FpML-5/transparency
Content:
complex, 1 attribute, 4 elements
Defined:
globally in fpml-shared-5-13.xsd; see XML source
Includes:
definitions of 1 attribute, 4 elements
Used:
at 3 locations

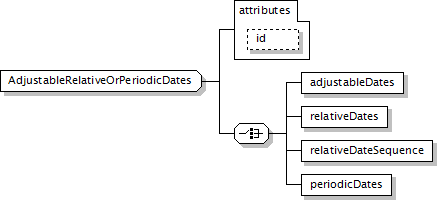

Component Diagram
XML Representation Summary
<...

id
 =
xsd:ID

>

Content:
adjustableDates | relativeDates | relativeDateSequence | periodicDates
</...>
Content Model Elements (4):
adjustableDates (defined in AdjustableRelativeOrPeriodicDates complexType),
periodicDates (defined in AdjustableRelativeOrPeriodicDates complexType),
relativeDateSequence (defined in AdjustableRelativeOrPeriodicDates complexType),
relativeDates (defined in AdjustableRelativeOrPeriodicDates complexType)
All Direct / Indirect Based Elements (3):
calculationDates (defined in CalculatedAmount complexType),
calculationDates (defined in LegAmount complexType),
valuationDates (defined in EquityValuation complexType)
Known Usage Locations
XML Source (w/o annotations (3); see within schema source)
<xsd:complexType name="AdjustableRelativeOrPeriodicDates">
<xsd:choice>
<xsd:element name="adjustableDates" type="AdjustableDates"/>
<xsd:element name="relativeDates" type="RelativeDates"/>
<xsd:element name="relativeDateSequence" type="RelativeDateSequence"/>
<xsd:element name="periodicDates" type="PeriodicDates"/>
</xsd:choice>
<xsd:attribute name="id" type="xsd:ID"/>
</xsd:complexType>
Attribute Detail (all declarations; defined within this component only; 1/1)
id
Type:
xsd:ID, predefined
Use:
optional
XML Source (see within schema source)
<xsd:attribute name="id" type="xsd:ID"/>
Content Element Detail (all declarations; defined within this component only; 4/4)
adjustableDates
Type:
AdjustableDates, complex content
A series of dates that shall be subject to adjustment if they would otherwise fall on a day that is not a business day in the specified business centers, together with the convention for adjusting the date.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="adjustableDates" type="AdjustableDates"/>
periodicDates
Type:
PeriodicDates, complex content
XML Source (see within schema source)
<xsd:element name="periodicDates" type="PeriodicDates"/>
relativeDates
Type:
RelativeDates, complex content
A series of dates specified as some offset to another series of dates (the anchor dates). This element is provided to maintain consistency with prior Transparency view models of valuationDates and should not be used for other purposes.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="relativeDates" type="RelativeDates"/>
relativeDateSequence
Type:
RelativeDateSequence, complex content
A series of dates specified as some offset to other dates (the anchor dates) which can
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="relativeDateSequence" type="RelativeDateSequence"/>
