complexType "RelativeDates"
Namespace:
http://www.fpml.org/FpML-5/transparency
Content:
complex, 1 attribute, 3 elements
Defined:
globally in fpml-shared-5-13.xsd; see XML source
Used:
at 3 locations

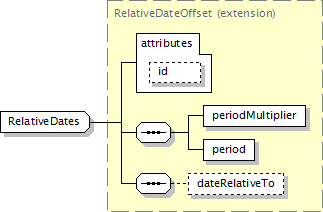

Component Diagram
XML Representation Summary
<...

id
 =
xsd:ID

>

Content:
periodMultiplier, period, dateRelativeTo?
</...>
Content Model Elements (3):
dateRelativeTo (defined in RelativeDateOffset complexType),
period (defined in Period complexType),
periodMultiplier (defined in Period complexType)
All Direct / Indirect Based Elements (3):
relativeDates (defined in AdjustableOrRelativeDates complexType),
relativeDates (defined in AdjustableRelativeOrPeriodicDates complexType),
relativeDates (defined in AdjustableRelativeOrPeriodicDates2 complexType)
Known Usage Locations
Annotation
A type describing a set of dates defined as relative to another set of dates.
Type Definition Detail
Type Derivation Tree
Period (extension)
  Offset (extension)
      RelativeDateOffset (extension)
          RelativeDates
XML Source (w/o annotations (1); see within schema source)
<xsd:complexType name="RelativeDates">
<xsd:complexContent>
<xsd:extension base="RelativeDateOffset"/>
</xsd:complexContent>
</xsd:complexType>
