complexType "WithdrawalPartyTradeInformation"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 5 elements
Defined:
globally in fpml-business-events-5-13.xsd; see XML source
Includes:
definitions of 3 elements
Used:
at 1 location

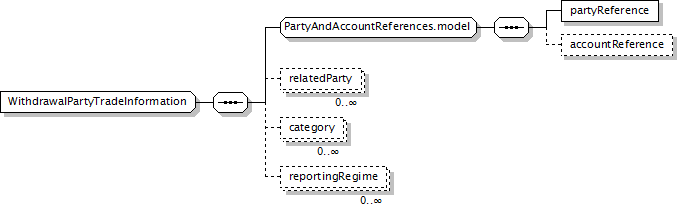

Component Diagram
XML Representation Summary
<...>

Content:
partyReference, accountReference?, relatedParty*, category*, reportingRegime*
</...>
Content Model Elements (5):
accountReference (defined in PartyAndAccountReferences.model group),
category (in partyTradeInformation in withdrawal),
partyReference (defined in PartyAndAccountReferences.model group),
relatedParty (in partyTradeInformation in withdrawal),
reportingRegime (in partyTradeInformation in withdrawal)
All Direct / Indirect Based Elements (1):
partyTradeInformation  (in withdrawal)
Known Usage Locations
Annotation
A type defining party-specific additional information that may be recorded against a trade, for withdrawal purposes.
XML Source (w/o annotations (5); see within schema source)
<xsd:complexType name="WithdrawalPartyTradeInformation">
<xsd:sequence>
<xsd:group ref="PartyAndAccountReferences.model"/>
<xsd:element maxOccurs="unbounded" minOccurs="0" name="relatedParty" type="RelatedParty"/>
<xsd:element maxOccurs="unbounded" minOccurs="0" name="category" type="TradeCategory"/>
<xsd:element maxOccurs="unbounded" minOccurs="0" name="reportingRegime" type="ReportingRegimeIdentifier"/>
</xsd:sequence>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 3/5)
category
Type:
TradeCategory, simple content
Used to categorize trades into user-defined categories, such as house trades vs. customer trades.
Simple Content
xsd:normalizedString
maxLength:
255
minLength:
0
XML Source (w/o annotations (1); see within schema source)
<xsd:element maxOccurs="unbounded" minOccurs="0" name="category" type="TradeCategory"/>
relatedParty
Type:
RelatedParty, complex content
This may be used to identify one or more parties that perform a role within the transaction. If this is within a partyTradeInformation block, the related party performs the role with respect to the party identifie by the "partyReference" in the partyTradeInformation block.
XML Source (w/o annotations (1); see within schema source)
<xsd:element maxOccurs="unbounded" minOccurs="0" name="relatedParty" type="RelatedParty"/>
reportingRegime
Type:
ReportingRegimeIdentifier, complex content
Allows the organization to specify which if any relevant regulators or other supervisory bodies this is relevant for, and what reporting rules apply.
XML Source (w/o annotations (1); see within schema source)
<xsd:element maxOccurs="unbounded" minOccurs="0" name="reportingRegime" type="ReportingRegimeIdentifier"/>
