element <allocationTradeId> (local)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
TradeIdentifier
Content:
complex, 1 attribute, 6 elements
Defined:
locally within PartyTradeIdentifier complexType in fpml-doc-5-13.xsd; see XML source

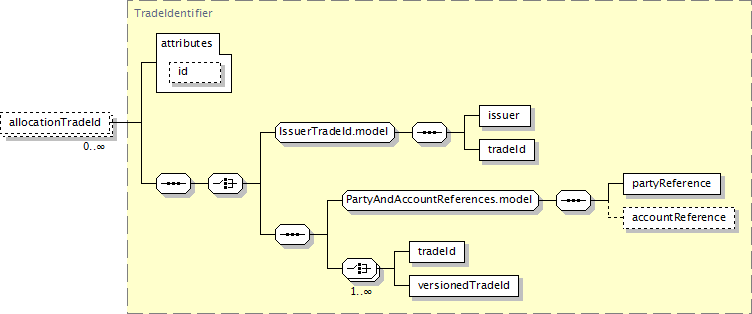

Component Diagram
XML Representation Summary
<allocationTradeId

id
 =
xsd:ID

>

Content:
(issuer, tradeId) | (partyReference, accountReference?, (tradeId | versionedTradeId)+)
</allocationTradeId>
Content model elements (6):
accountReference (defined in PartyAndAccountReferences.model group),
issuer (defined in IssuerTradeId.model group),
partyReference (defined in PartyAndAccountReferences.model group),
tradeId (defined in IssuerTradeId.model group),
tradeId (defined in TradeIdentifier complexType),
versionedTradeId
Included in content model of elements (21):
feeTradeIdentifier,
newTradeIdentifier,
oldTradeIdentifier (defined in TradeChangeContent complexType),
oldTradeIdentifier (in novation),
partyTradeIdentifier (defined in PartyTradeIdentifiers complexType),
partyTradeIdentifier (defined in Portfolio complexType),
partyTradeIdentifier (in clearingEligibility),
partyTradeIdentifier (in tradeHeader),
partyTradeIdentifier (in tradeHeader),
partyTradeIdentifier (in tradeReferenceInformation),
partyTradeIdentifier (in verificationStatusNotification),
partyTradeIdentifier (in withdrawal),
resultingTradeIdentifier,
tradeIdentifier (defined in DeClear complexType),
tradeIdentifier (defined in OptionExercise complexType),
tradeIdentifier (defined in TradeChangeBase complexType),
tradeIdentifier (in optionEvent),
tradeIdentifier (in optionExpiry defined in OptionsEventsBase.model group),
tradeIdentifier (in optionExpiry in maturityNotification),
tradeIdentifier (in tradeChangeAdviceRetracted),
tradeIdentifier (in tradeMaturity)
Annotation
The trade id of the allocated trade. This is used by the block trade to reference the allocated trade. For new implementations, the use of the "linkedTrade" element is preferred.
XML Source (w/o annotations (1); see within schema source)
<xsd:element maxOccurs="unbounded" minOccurs="0" name="allocationTradeId" type="TradeIdentifier"/>
