element <resultingTradeIdentifier> (local)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
PartyTradeIdentifier
Content:
complex, 1 attribute, 13 elements
Defined:
locally within PhysicalSettlement complexType in fpml-business-events-5-13.xsd; see XML source

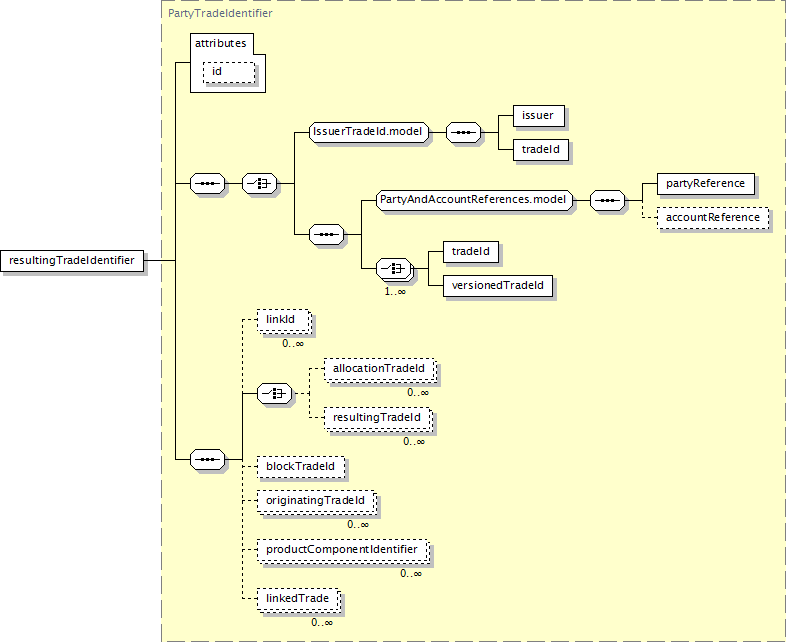

Component Diagram
XML Representation Summary
<resultingTradeIdentifier

id
 =
xsd:ID

>

Content:
((issuer, tradeId) | (partyReference, accountReference?, (tradeId | versionedTradeId)+)), linkId*, (allocationTradeId* | resultingTradeId*), blockTradeId?, originatingTradeId*, productComponentIdentifier*, linkedTrade*
</resultingTradeIdentifier>
Content model elements (13):
accountReference (defined in PartyAndAccountReferences.model group),
allocationTradeId (defined in PartyTradeIdentifier complexType),
blockTradeId,
issuer (defined in IssuerTradeId.model group),
linkId (defined in PartyTradeIdentifier complexType),
linkedTrade,
originatingTradeId (defined in PartyTradeIdentifier complexType),
partyReference (defined in PartyAndAccountReferences.model group),
productComponentIdentifier,
resultingTradeId,
tradeId (defined in IssuerTradeId.model group),
tradeId (defined in TradeIdentifier complexType),
versionedTradeId
Included in content model of elements (3):
physicalSettlement (defined in OptionExercise complexType),
physicalSettlement (in noTouch),
physicalSettlement (in touch in optionEvent)
Annotation
The ID of the trade that resulted from the physical settlement.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="resultingTradeIdentifier" type="PartyTradeIdentifier"/>
