element <otherPartyPayment> (local)

Namespace:	http://www.fpml.org/FpML-5/confirmation
Type:	Payment
Content:	complex, 2 attributes, 10 elements
Defined:	locally within Trade complexType in fpml-doc-5-13.xsd; see XML source

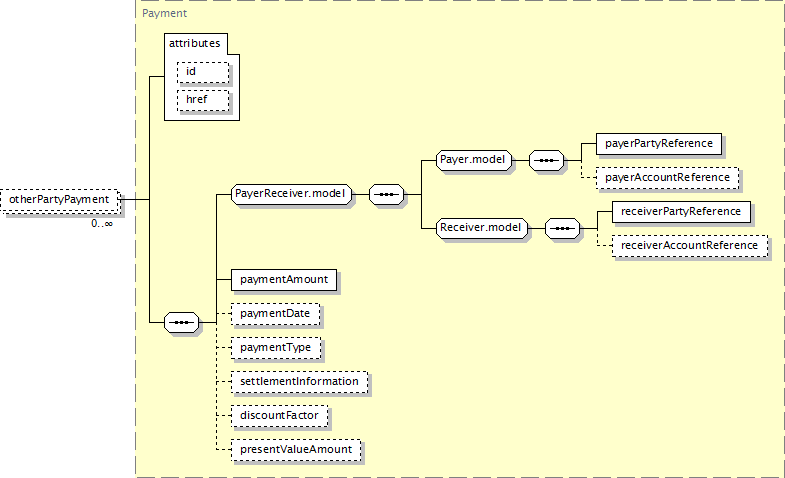

Component Diagram

XML Representation Summary

<otherPartyPayment

id	=	xsd:ID
href	=	xsd:IDREF

Content:

payerPartyReference, payerAccountReference?, receiverPartyReference, receiverAccountReference?, paymentAmount, paymentDate?, paymentType?, settlementInformation?, discountFactor?, presentValueAmount?

</otherPartyPayment>

Content model elements (10):

discountFactor (defined in Payment complexType),

payerAccountReference,

payerPartyReference (defined in Payer.model group),

paymentAmount (defined in Payment complexType),

paymentDate (defined in Payment complexType),

paymentType (defined in Payment complexType),

presentValueAmount (defined in Payment complexType),

receiverAccountReference,

receiverPartyReference (defined in Receiver.model group),

settlementInformation (defined in Payment complexType)

Included in content model of elements (20):

feeTrade,

newTrade,

oldTrade (defined in TradeChangeContent complexType),

oldTrade (in novation),

originalTrade (defined in OptionExercise complexType),

originalTrade (defined in TradeChangeBase complexType),

originalTrade (in optionEvent),

originalTrade (in optionExpiry defined in OptionsEventsBase.model group),

resultingTrade (defined in PhysicalSettlement complexType),

resultingTrade (defined in TradeChangeBase complexType),

trade (defined in DataDocument complexType),

trade (defined in TradeAmendmentContent complexType),

trade (defined in TradeChangeContent complexType),

trade (defined in TradeOrInfo.model group),

trade (defined in TradePackage complexType),

trade (defined in TradingEventsBase.model group),

trade (in affectedTransactions),

trade (in approvalStatusNotification),

trade (in clearingStatusItem),

trade (in withdrawal)

Annotation

Other fees or additional payments associated with the trade, e.g. broker commissions, where one or more of the parties involved are not principal parties involved in the trade.

XML Source (w/o annotations (1); see within schema source)

<xsd:element maxOccurs="unbounded" minOccurs="0" name="otherPartyPayment" type="Payment"/>
