complexType "PhysicalSettlement"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 3 elements
Defined:
globally in fpml-business-events-5-13.xsd; see XML source
Includes:
definitions of 3 elements
Used:
at 3 locations

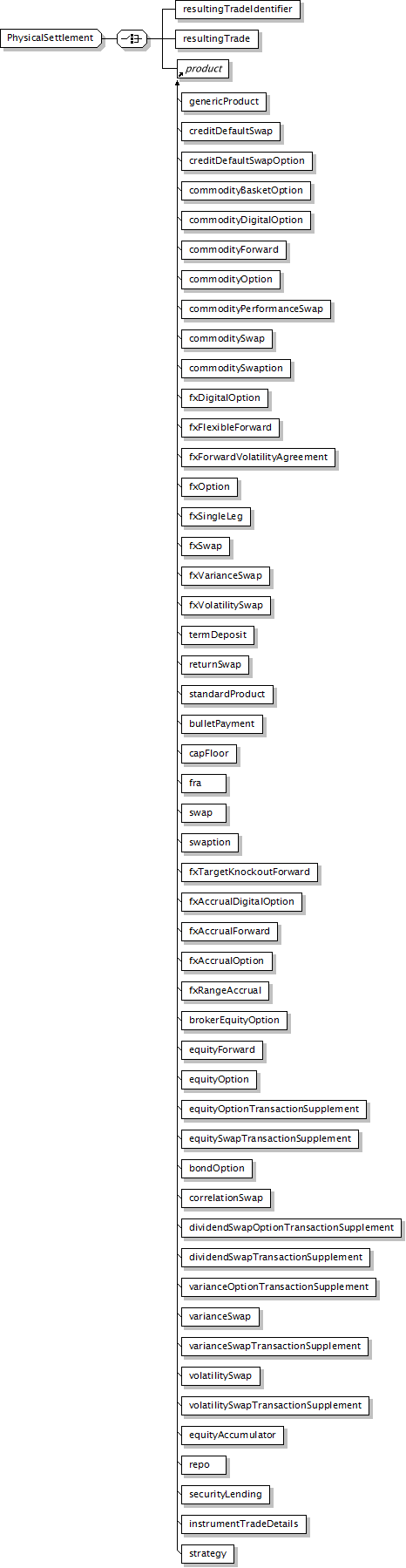

Component Diagram
XML Representation Summary
<...>

Content:
resultingTradeIdentifier | resultingTrade | product
</...>
Content Model Elements (3):
product,
resultingTrade (defined in PhysicalSettlement complexType),
resultingTradeIdentifier
All Direct / Indirect Based Elements (3):
physicalSettlement (defined in OptionExercise complexType),
physicalSettlement (in noTouch),
physicalSettlement (in touch in optionEvent)
Known Usage Locations
Annotation
A structure that describes how an option settles into a physical trade.
XML Source (w/o annotations (3); see within schema source)
<xsd:complexType name="PhysicalSettlement">
<xsd:choice>
<xsd:element name="resultingTradeIdentifier" type="PartyTradeIdentifier"/>
<xsd:element name="resultingTrade" type="Trade"/>
<xsd:element ref="product"/>
</xsd:choice>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 3/3)
product
Type:
Product, complex content
Abstract:
(may not be used directly in instance XML documents)
Subst.Gr:
substituted with 50 elements
XML Source (see within schema source)
<xsd:element ref="product"/>
resultingTrade
Type:
Trade, complex content
The trade that resulted from the physical settlement.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="resultingTrade" type="Trade"/>
resultingTradeIdentifier
Type:
PartyTradeIdentifier, complex content
The ID of the trade that resulted from the physical settlement.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="resultingTradeIdentifier" type="PartyTradeIdentifier"/>
