complexType "FxOptionPremium"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 1 attribute, 8 elements
Defined:
globally in fpml-fx-5-13.xsd; see XML source
Includes:
definitions of 2 elements
Used:
at 5 locations

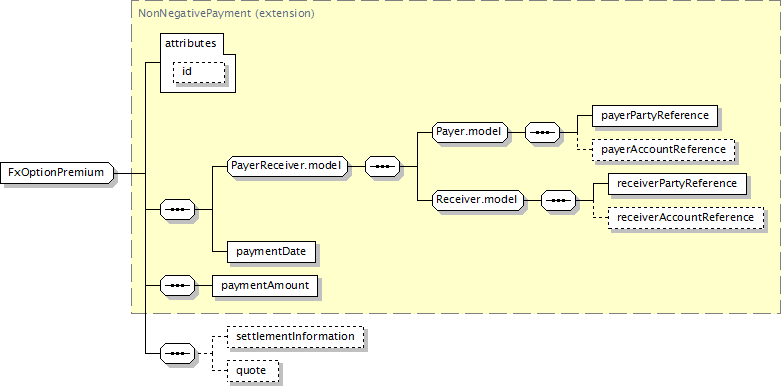

Component Diagram
XML Representation Summary
<...

id
 =
xsd:ID

>

Content:
payerPartyReference, payerAccountReference?, receiverPartyReference, receiverAccountReference?, paymentDate, paymentAmount, settlementInformation?, quote?
</...>
Content Model Elements (8):
payerAccountReference,
payerPartyReference (defined in Payer.model group),
paymentAmount (defined in NonNegativePayment complexType),
paymentDate (defined in PaymentBaseExtended complexType),
quote (defined in FxOptionPremium complexType),
receiverAccountReference,
receiverPartyReference (defined in Receiver.model group),
settlementInformation (defined in FxOptionPremium complexType)
All Direct / Indirect Based Elements (5):
premium (in fxAccrualDigitalOption),
premium (in fxAccrualOption),
premium (in fxDigitalOption),
premium (in fxOption),
premium (in fxRangeAccrual)
Known Usage Locations
Annotation
A type that specifies the premium exchanged for a single option trade or option strategy.
Type Definition Detail
Type Derivation Tree
PaymentBase (extension)
  PaymentBaseExtended (extension)
      NonNegativePayment (extension)
          FxOptionPremium
XML Source (w/o annotations (3); see within schema source)
<xsd:complexType name="FxOptionPremium">
<xsd:complexContent>
<xsd:extension base="NonNegativePayment">
<xsd:sequence>
<xsd:element minOccurs="0" name="settlementInformation" type="SettlementInformation"/>
<xsd:element minOccurs="0" name="quote" type="PremiumQuote"/>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 2/8)
quote
Type:
PremiumQuote, complex content
This is the option premium as quoted. It is expected to be consistent with the premiumAmount and is for information only.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="quote" type="PremiumQuote"/>
settlementInformation
Type:
SettlementInformation, complex content
The information required to settle a currency payment that results from a trade.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="settlementInformation" type="SettlementInformation"/>
