complexType "NonNegativePayment"

Namespace:	http://www.fpml.org/FpML-5/confirmation
Content:	complex, 1 attribute, 6 elements
Defined:	globally in fpml-shared-5-13.xsd; see XML source
Includes:	definition of 1 element
Used:	at 7 locations

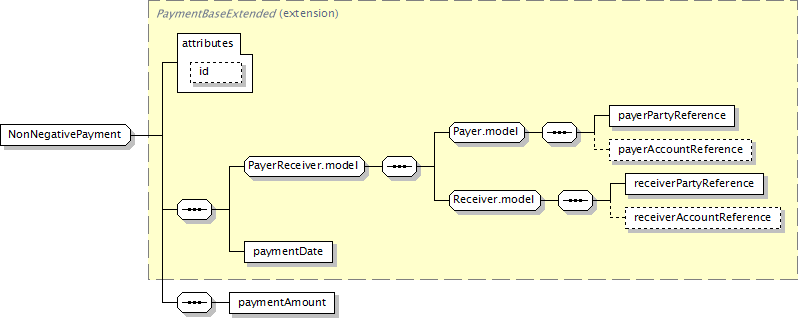

Component Diagram

XML Representation Summary

<...

xsd:ID

Content:

payerPartyReference, payerAccountReference?, receiverPartyReference, receiverAccountReference?, paymentDate, paymentAmount

</...>

Content Model Elements (6):

payerAccountReference,

payerPartyReference (defined in Payer.model group),

paymentAmount (defined in NonNegativePayment complexType),

paymentDate (defined in PaymentBaseExtended complexType),

receiverAccountReference,

receiverPartyReference (defined in Receiver.model group)

Known Direct Subtypes (3):

ClassifiablePayment, CommodityPremium, FxOptionPremium

All Direct / Indirect Based Elements (14):

additionalPayment (defined in NettedSwapBase complexType),

payment (defined in OptionExercise complexType),

payment (in noTouch),

payment (in touch in optionEvent),

premium (in commodityBasketOption),

premium (in commodityDigitalOption),

premium (in commodityOption),

premium (in commoditySwaption),

premium (in fxAccrualDigitalOption),

premium (in fxAccrualOption),

premium (in fxDigitalOption),

premium (in fxOption),

premium (in fxRangeAccrual),

rebatePayment

Known Usage Locations

In derivations of other global types (3):

ClassifiablePayment (as extension base),

CommodityPremium (as extension base),

FxOptionPremium (as extension base)
As direct type of elements (4):

payment (defined in OptionExercise complexType),

payment (in noTouch),

payment (in touch in optionEvent),

rebatePayment

Annotation

A complex type to specify non negative payments.

Type Definition Detail

Type Derivation Tree

PaymentBase (extension)

PaymentBaseExtended (extension)

NonNegativePayment

XML Source (w/o annotations (2); see within schema source)

<xsd:complexType name="NonNegativePayment">

<xsd:complexContent>

<xsd:extension base="PaymentBaseExtended">

<xsd:sequence>

<xsd:element name="paymentAmount" type="NonNegativeMoney"/>

</xsd:sequence>

</xsd:extension>

</xsd:complexContent>

</xsd:complexType>

Content Element Detail (all declarations; defined within this component only; 1/6)

paymentAmount

Type:

NonNegativeMoney, complex content

Non negative payment amount.

XML Source (w/o annotations (1); see within schema source)

<xsd:element name="paymentAmount" type="NonNegativeMoney"/>
