complexType "PaymentBaseExtended"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 1 attribute, 5 elements
Abstract:
(cannot be assigned directly to elements used in instance XML documents)
Defined:
globally in fpml-shared-5-13.xsd; see XML source
Includes:
definition of 1 element
Used:
at 2 locations

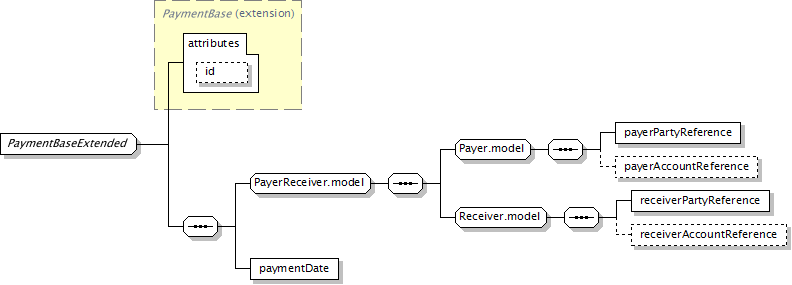

Component Diagram
XML Representation Summary
<...

id
 =
xsd:ID

>

Content:
payerPartyReference, payerAccountReference?, receiverPartyReference, receiverAccountReference?, paymentDate
</...>
Content Model Elements (5):
payerAccountReference,
payerPartyReference (defined in Payer.model group),
paymentDate (defined in PaymentBaseExtended complexType),
receiverAccountReference,
receiverPartyReference (defined in Receiver.model group)
Known Direct Subtypes (2):
FxStraddlePremium, NonNegativePayment
Known Indirect Subtypes (3):
ClassifiablePayment, CommodityPremium, FxOptionPremium
All Direct / Indirect Based Elements (15):
additionalPayment (defined in NettedSwapBase complexType),
payment (defined in OptionExercise complexType),
payment (in noTouch),
payment (in touch in optionEvent),
premium (in commodityBasketOption),
premium (in commodityDigitalOption),
premium (in commodityOption),
premium (in commoditySwaption),
premium (in fxAccrualDigitalOption),
premium (in fxAccrualOption),
premium (in fxDigitalOption),
premium (in fxOption),
premium (in fxRangeAccrual),
premium (in straddle),
rebatePayment
Known Usage Locations
Annotation
Base type for payments.
Type Definition Detail
Type Derivation Tree
PaymentBase (extension)
  PaymentBaseExtended
XML Source (w/o annotations (2); see within schema source)
<xsd:complexType abstract="true" name="PaymentBaseExtended">
<xsd:complexContent>
<xsd:extension base="PaymentBase">
<xsd:sequence>
<xsd:group ref="PayerReceiver.model"/>
<xsd:element name="paymentDate" type="AdjustableOrRelativeDate"/>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 1/5)
paymentDate
Type:
AdjustableOrRelativeDate, complex content
The payment date, which can be expressed as either an adjustable or relative date.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="paymentDate" type="AdjustableOrRelativeDate"/>
