complexType "AbstractLoanContractEvent"

Namespace:	http://www.fpml.org/FpML-5/confirmation
Content:	complex, 12 elements
Abstract:	(cannot be assigned directly to elements used in instance XML documents)
Defined:	globally in fpml-loan-5-13.xsd; see XML source
Includes:	definition of 1 element
Used:	at 10 locations

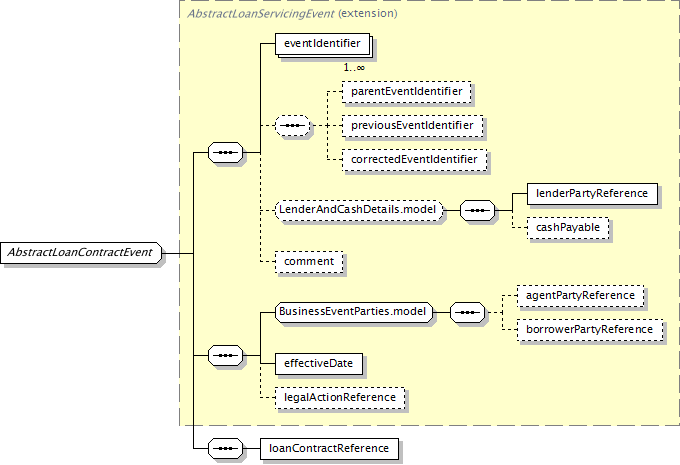

Component Diagram

XML Representation Summary

<...>

Content:

eventIdentifier+, (parentEventIdentifier?, previousEventIdentifier?, correctedEventIdentifier?)?, (lenderPartyReference, cashPayable?)?, comment?, agentPartyReference?, borrowerPartyReference?, effectiveDate, legalActionReference?, loanContractReference

</...>

Content Model Elements (12):

agentPartyReference (defined in BusinessEventParties.model group),

borrowerPartyReference (defined in BusinessEventParties.model group),

cashPayable,

comment (defined in AbstractLoanEvent complexType),

correctedEventIdentifier,

effectiveDate (defined in AbstractLoanServicingEvent complexType),

eventIdentifier (defined in AbstractLoanEvent complexType),

legalActionReference (defined in AbstractLoanServicingEvent complexType),

lenderPartyReference (defined in LenderAndCashDetails.model group),

loanContractReference (defined in AbstractLoanContractEvent complexType),

parentEventIdentifier,

previousEventIdentifier

Known Direct Subtypes (10):

AbstractLoanContractPaymentEvent, Borrowing, InterestCapitalization, LegacyInterestCapitalization, LegacyLoanInterestPayment, LoanContractAdjustment, LoanContractBaseRateSet, LoanContractMaturityChange, LoanInterestPayment, Repayment

Known Indirect Subtypes (1):

BreakageFeePayment

All Direct / Indirect Based Elements (10):

baseRateSet, borrowing, breakageFeePayment, interestCapitalization, interestPayment, legacyInterestCapitalization, legacyInterestPayment, loanContractAdjustment, maturityChange, repayment

Known Usage Locations

In derivations of other global types (10):

AbstractLoanContractPaymentEvent (as extension base),

Borrowing (as extension base),

InterestCapitalization (as extension base),

LegacyInterestCapitalization (as extension base),

LegacyLoanInterestPayment (as extension base),

LoanContractAdjustment (as extension base),

LoanContractBaseRateSet (as extension base),

LoanContractMaturityChange (as extension base),

LoanInterestPayment (as extension base),

Repayment (as extension base)

Annotation

An abstract base type for all loan contract-level business events.

Type Definition Detail

Type Derivation Tree

AbstractLoanEvent (extension)

AbstractLoanServicingEvent (extension)

AbstractLoanContractEvent

XML Source (w/o annotations (2); see within schema source)

<xsd:complexType abstract="true" name="AbstractLoanContractEvent">

<xsd:complexContent>

<xsd:extension base="AbstractLoanServicingEvent">

<xsd:sequence>

<xsd:element name="loanContractReference" type="LoanContractReference"/>

</xsd:sequence>

</xsd:extension>

</xsd:complexContent>

</xsd:complexType>

Content Element Detail (all declarations; defined within this component only; 1/12)

loanContractReference

Type:

LoanContractReference, empty content

Reference to a loan contract.

XML Source (w/o annotations (1); see within schema source)

<xsd:element name="loanContractReference" type="LoanContractReference"/>
