complexType "AccruingFeeChange"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 13 elements
Defined:
globally in fpml-loan-5-13.xsd; see XML source
Includes:
definition of 1 element
Used:
at 1 location

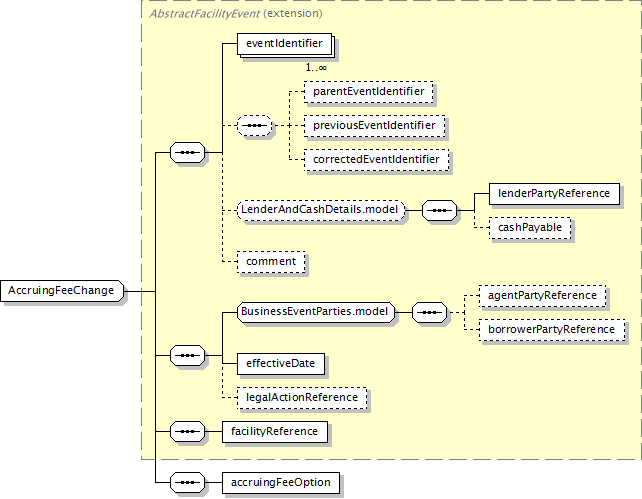

Component Diagram
XML Representation Summary
<...>

Content:
eventIdentifier+, (parentEventIdentifier?, previousEventIdentifier?, correctedEventIdentifier?)?, (lenderPartyReference, cashPayable?)?, comment?, agentPartyReference?, borrowerPartyReference?, effectiveDate, legalActionReference?, facilityReference, accruingFeeOption
</...>
Content Model Elements (13):
accruingFeeOption (in accruingFeeChange),
agentPartyReference (defined in BusinessEventParties.model group),
borrowerPartyReference (defined in BusinessEventParties.model group),
cashPayable,
comment (defined in AbstractLoanEvent complexType),
correctedEventIdentifier,
effectiveDate (defined in AbstractLoanServicingEvent complexType),
eventIdentifier (defined in AbstractLoanEvent complexType),
facilityReference (defined in AbstractFacilityEvent complexType),
legalActionReference (defined in AbstractLoanServicingEvent complexType),
lenderPartyReference (defined in LenderAndCashDetails.model group),
parentEventIdentifier,
previousEventIdentifier
All Direct / Indirect Based Elements (1):
accruingFeeChange
Known Usage Locations
Annotation
An event describing a future change to an accruing fee associated with a specific facility.
Type Definition Detail
Type Derivation Tree
AbstractLoanEvent (extension)
  AbstractLoanServicingEvent (extension)
      AbstractFacilityEvent (extension)
          AccruingFeeChange
XML Source (w/o annotations (2); see within schema source)
<xsd:complexType name="AccruingFeeChange">
<xsd:complexContent>
<xsd:extension base="AbstractFacilityEvent">
<xsd:sequence>
<xsd:element name="accruingFeeOption" type="AccruingFeeOption"/>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 1/13)
accruingFeeOption
Type:
AccruingFeeOption, complex content
Defines new rate and the date on which the rate is no longer valid.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="accruingFeeOption" type="AccruingFeeOption"/>
