complexType "AccruingPikPayment"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 16 elements
Defined:
globally in fpml-loan-5-13.xsd; see XML source
Includes:
definitions of 2 elements
Used:
at 1 location

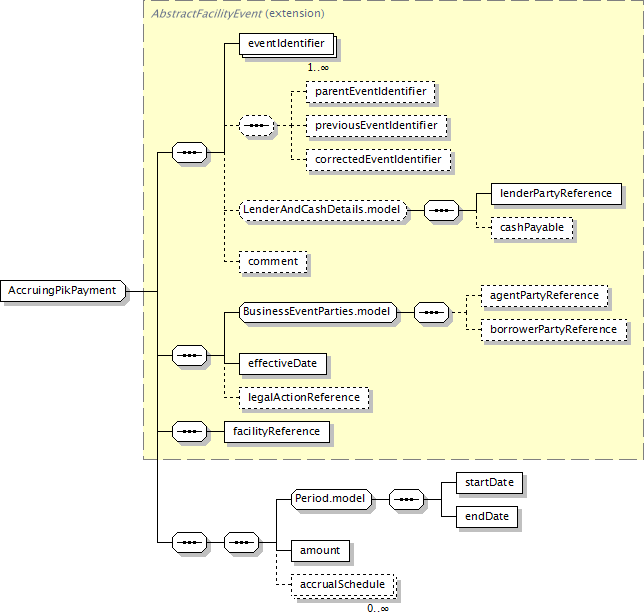

Component Diagram
XML Representation Summary
<...>

Content:
eventIdentifier+, (parentEventIdentifier?, previousEventIdentifier?, correctedEventIdentifier?)?, (lenderPartyReference, cashPayable?)?, comment?, agentPartyReference?, borrowerPartyReference?, effectiveDate, legalActionReference?, facilityReference, startDate, endDate, amount, accrualSchedule*
</...>
Content Model Elements (16):
accrualSchedule (in accruingPikPayment),
agentPartyReference (defined in BusinessEventParties.model group),
amount (in accruingPikPayment),
borrowerPartyReference (defined in BusinessEventParties.model group),
cashPayable,
comment (defined in AbstractLoanEvent complexType),
correctedEventIdentifier,
effectiveDate (defined in AbstractLoanServicingEvent complexType),
endDate (defined in Period.model group),
eventIdentifier (defined in AbstractLoanEvent complexType),
facilityReference (defined in AbstractFacilityEvent complexType),
legalActionReference (defined in AbstractLoanServicingEvent complexType),
lenderPartyReference (defined in LenderAndCashDetails.model group),
parentEventIdentifier,
previousEventIdentifier,
startDate (defined in Period.model group)
All Direct / Indirect Based Elements (1):
accruingPikPayment
Known Usage Locations
Annotation
An event representing a payment to facilitate capitalization of interest on all outstanding contracts against a particular facility.
Type Definition Detail
Type Derivation Tree
AbstractLoanEvent (extension)
  AbstractLoanServicingEvent (extension)
      AbstractFacilityEvent (extension)
          AccruingPikPayment
XML Source (w/o annotations (3); see within schema source)
<xsd:complexType name="AccruingPikPayment">
<xsd:complexContent>
<xsd:extension base="AbstractFacilityEvent">
<xsd:sequence>
<xsd:sequence>
<xsd:group ref="Period.model"/>
<xsd:element name="amount" type="MoneyWithParticipantShare"/>
<xsd:element maxOccurs="unbounded" minOccurs="0" name="accrualSchedule" type="AccrualPeriod"/>
</xsd:sequence>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 2/16)
accrualSchedule
Type:
AccrualPeriod, complex content
A schedule that incorporates all sub-periods of an accrual calculation.
XML Source (w/o annotations (1); see within schema source)
<xsd:element maxOccurs="unbounded" minOccurs="0" name="accrualSchedule" type="AccrualPeriod"/>
amount
Type:
MoneyWithParticipantShare, complex content
XML Source (see within schema source)
<xsd:element name="amount" type="MoneyWithParticipantShare"/>
