complexType "CovenantObligationIdentifier"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 1 attribute, 4 elements
Defined:
globally in fpml-loan-5-13.xsd; see XML source
Includes:
definitions of 1 attribute, 4 elements
Used:
at 2 locations

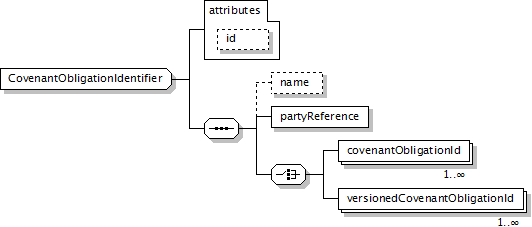

Component Diagram
XML Representation Summary
<...

id
 =
xsd:ID

>

Content:
name?, partyReference, (covenantObligationId+ | versionedCovenantObligationId+)
</...>
Content Model Elements (4):
covenantObligationId (defined in CovenantObligationIdentifier complexType),
name (defined in CovenantObligationIdentifier complexType),
partyReference (defined in CovenantObligationIdentifier complexType),
versionedCovenantObligationId
Known Direct Subtypes (1):
CovenantObligationSummary
Known Indirect Subtypes (3):
AbstractLoanCovenantObligation, LoanCovenantObligation, LoanCovenantObligationSummary
All Direct / Indirect Based Elements (4):
covenant (defined in CovenantObligationDetails.model group),
covenant (defined in Deal complexType),
covenantIdentifier,
covenantSummary
Known Usage Locations
Annotation
A type defining a covenant obligation identifier issued by the indicated party.
XML Source (w/o annotations (4); see within schema source)
<xsd:complexType abstract="false" name="CovenantObligationIdentifier">
<xsd:sequence>
<xsd:element minOccurs="0" name="name" type="NonEmptyToken"/>
<xsd:element name="partyReference" type="PartyReference"/>
<xsd:choice>
<xsd:element maxOccurs="unbounded" name="covenantObligationId" type="CovenantObligationId"/>
<xsd:element maxOccurs="unbounded" name="versionedCovenantObligationId" type="VersionedCovenantObligationId"/>
</xsd:choice>
</xsd:sequence>
<xsd:attribute name="id" type="xsd:ID"/>
</xsd:complexType>
Attribute Detail (all declarations; defined within this component only; 1/1)
id
Type:
xsd:ID, predefined
Use:
optional
XML Source (see within schema source)
<xsd:attribute name="id" type="xsd:ID"/>
Content Element Detail (all declarations; defined within this component only; 4/4)
covenantObligationId
Type:
CovenantObligationId, simple content
A structure that defines a covenant obligation identifier based on a qualifying scheme.
Simple Content
xsd:normalizedString
maxLength:
255
minLength:
1
XML Source (w/o annotations (1); see within schema source)
<xsd:element maxOccurs="unbounded" name="covenantObligationId" type="CovenantObligationId"/>
name
Type:
NonEmptyToken, simple content
Long name of the underlying covenant obligation.
Simple Content
xsd:token
minLength:
1
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="name" type="NonEmptyToken"/>
partyReference
Type:
PartyReference, empty content
Reference to a party.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="partyReference" type="PartyReference"/>
versionedCovenantObligationId
Type:
VersionedCovenantObligationId, complex content
XML Source (see within schema source)
<xsd:element maxOccurs="unbounded" name="versionedCovenantObligationId" type="VersionedCovenantObligationId"/>
