complexType "LoanCovenantObligation"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 1 attribute, 15 elements
Defined:
globally in fpml-loan-5-13.xsd; see XML source
Includes:
definitions of 7 elements
Used:
at 2 locations

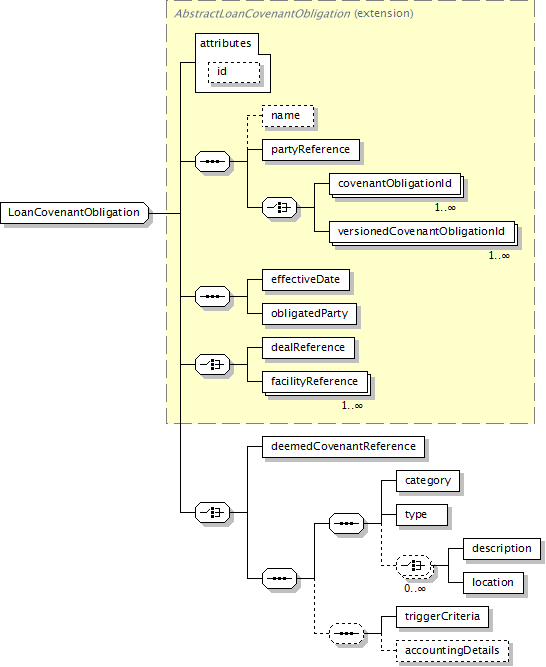

Component Diagram
XML Representation Summary
<...

id
 =
xsd:ID

>

Content:
name?, partyReference, (covenantObligationId+ | versionedCovenantObligationId+), effectiveDate, obligatedParty, (dealReference | facilityReference+), (deemedCovenantReference | (category, type, (description | location)*, (triggerCriteria, accountingDetails?)?))
</...>
Content Model Elements (15):
accountingDetails,
category (defined in LoanCovenantObligation complexType),
covenantObligationId (defined in CovenantObligationIdentifier complexType),
dealReference (defined in LoanCovenantObligationSummary complexType),
deemedCovenantReference,
description (defined in LoanCovenantObligation complexType),
effectiveDate (defined in CovenantObligationSummary complexType),
facilityReference (defined in LoanCovenantObligationSummary complexType),
location (defined in LoanCovenantObligation complexType),
name (defined in CovenantObligationIdentifier complexType),
obligatedParty,
partyReference (defined in CovenantObligationIdentifier complexType),
triggerCriteria,
type (defined in LoanCovenantObligation complexType),
versionedCovenantObligationId
All Direct / Indirect Based Elements (2):
covenant (defined in CovenantObligationDetails.model group),
covenant (defined in Deal complexType)
Known Usage Locations
Annotation
A syndicated bank loan deal (credit agreement) covenant obligation definition.
Type Definition Detail
Type Derivation Tree
CovenantObligationIdentifier (extension)
  CovenantObligationSummary (extension)
      LoanCovenantObligationSummary (extension)
          AbstractLoanCovenantObligation (extension)
              LoanCovenantObligation
XML Source (w/o annotations (9); see within schema source)
<xsd:complexType name="LoanCovenantObligation">
<xsd:complexContent>
<xsd:extension base="AbstractLoanCovenantObligation">
<xsd:choice>
<xsd:element name="deemedCovenantReference" type="LoanCovenantObligationReference"/>
<xsd:sequence>
<xsd:sequence>
<xsd:element name="category" type="LoanCovenantObligationCategoryType"/>
<xsd:element name="type" type="LoanCovenantObligationType"/>
<xsd:choice maxOccurs="unbounded" minOccurs="0">
<xsd:element name="description" type="NonEmptyNormalizedString"/>
<xsd:element name="location" type="NonEmptyNormalizedString"/>
</xsd:choice>
</xsd:sequence>
<xsd:sequence minOccurs="0">
<xsd:element name="triggerCriteria" type="LoanCovenantObligationTriggerCriteriaDetails"/>
<xsd:element minOccurs="0" name="accountingDetails" type="LoanCovenantObligationAccountingDetails"/>
</xsd:sequence>
</xsd:sequence>
</xsd:choice>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 7/15)
accountingDetails
Type:
LoanCovenantObligationAccountingDetails, complex content
An open structure to describe miscellaneous or other characteristics of the covenant.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="accountingDetails" type="LoanCovenantObligationAccountingDetails"/>
category
Type:
LoanCovenantObligationCategoryType, simple content
A structure used to uniquely identify a loan covenant obligation category, based on a scheme.
Simple Content
xsd:normalizedString
maxLength:
255
minLength:
1
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="category" type="LoanCovenantObligationCategoryType"/>
deemedCovenantReference
Type:
LoanCovenantObligationReference, empty content
Defines a referenced covenant from another deal or facility, in the event that a covenant from another deal or facility is deemed applicable.
XML Source (w/o annotations (1); see within schema source)
description
Type:
NonEmptyNormalizedString, simple content
An optional free form text field to further describe the covenant language. This field can be used to house the exact language as depicted in the credit agreement.
Simple Content
xsd:normalizedString
minLength:
1
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="description" type="NonEmptyNormalizedString"/>
location
Type:
NonEmptyNormalizedString, simple content
A structure to describe the location of the covenant language within the credit agreement (i.e. specific section, paragraph, subparagraph, etc.). Note: this structure is intended to be used for indicative purposes only.
Simple Content
xsd:normalizedString
minLength:
1
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="location" type="NonEmptyNormalizedString"/>
triggerCriteria
Type:
LoanCovenantObligationTriggerCriteriaDetails, complex content
A structure to describe the trigger criteria of a covenant obligation.
XML Source (w/o annotations (1); see within schema source)
type
Type:
LoanCovenantObligationType, simple content
A structure used to uniquely identify a loan covenant obligation type, based on a scheme.
Simple Content
xsd:normalizedString
maxLength:
255
minLength:
1
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="type" type="LoanCovenantObligationType"/>
