complexType "LoanCovenantObligationSummary"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 1 attribute, 8 elements
Defined:
globally in fpml-loan-5-13.xsd; see XML source
Includes:
definitions of 2 elements
Used:
at 2 locations

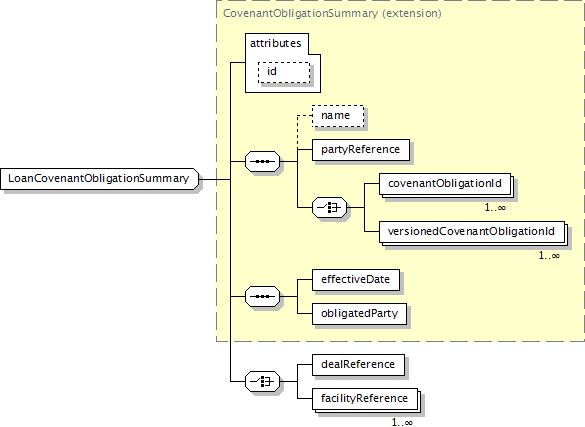

Component Diagram
XML Representation Summary
<...

id
 =
xsd:ID

>

Content:
name?, partyReference, (covenantObligationId+ | versionedCovenantObligationId+), effectiveDate, obligatedParty, (dealReference | facilityReference+)
</...>
Content Model Elements (8):
covenantObligationId (defined in CovenantObligationIdentifier complexType),
dealReference (defined in LoanCovenantObligationSummary complexType),
effectiveDate (defined in CovenantObligationSummary complexType),
facilityReference (defined in LoanCovenantObligationSummary complexType),
name (defined in CovenantObligationIdentifier complexType),
obligatedParty,
partyReference (defined in CovenantObligationIdentifier complexType),
versionedCovenantObligationId
Known Direct Subtypes (1):
AbstractLoanCovenantObligation
Known Indirect Subtypes (1):
LoanCovenantObligation
All Direct / Indirect Based Elements (3):
covenant (defined in CovenantObligationDetails.model group),
covenant (defined in Deal complexType),
covenantSummary
Known Usage Locations
Annotation
A syndicated bank loan deal (credit agreement) covenant obligation summary.
Type Definition Detail
Type Derivation Tree
CovenantObligationIdentifier (extension)
  CovenantObligationSummary (extension)
      LoanCovenantObligationSummary
XML Source (w/o annotations (1); see within schema source)
<xsd:complexType name="LoanCovenantObligationSummary">
<xsd:complexContent>
<xsd:extension base="CovenantObligationSummary">
<xsd:choice>
<xsd:element name="dealReference" type="DealReference"/>
<xsd:element maxOccurs="unbounded" name="facilityReference" type="FacilityReference"/>
</xsd:choice>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 2/8)
dealReference
Type:
DealReference, empty content
XML Source (see within schema source)
<xsd:element name="dealReference" type="DealReference"/>
facilityReference
Type:
FacilityReference, empty content
XML Source (see within schema source)
<xsd:element maxOccurs="unbounded" name="facilityReference" type="FacilityReference"/>
