complexType "FacilityExtensionFeePayment" | XML Schema Documentation

complexType "FacilityExtensionFeePayment"

Namespace:	http://www.fpml.org/FpML-5/confirmation
Content:	complex, 13 elements
Defined:	globally in fpml-loan-5-13.xsd; see XML source
Used:	at 1 location

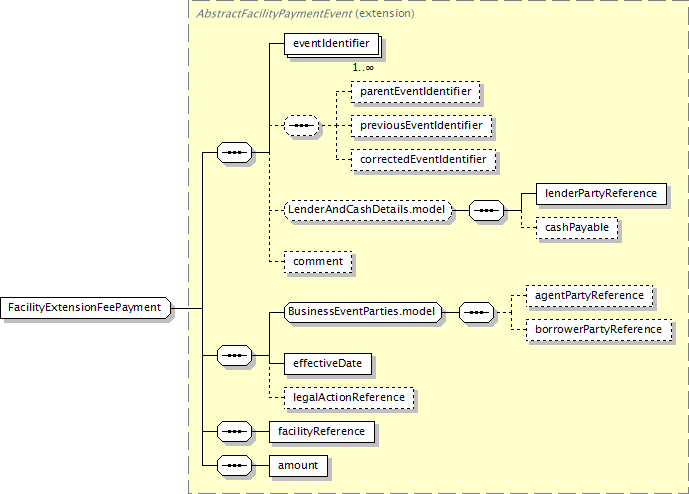

Component Diagram

XML Representation Summary

<...>

Content:

eventIdentifier+, (parentEventIdentifier?, previousEventIdentifier?, correctedEventIdentifier?)?, (lenderPartyReference, cashPayable?)?, comment?, agentPartyReference?, borrowerPartyReference?, effectiveDate, legalActionReference?, facilityReference, amount

</...>

Content Model Elements (13):

agentPartyReference (defined in BusinessEventParties.model group),

amount (defined in AbstractFacilityPaymentEvent complexType),

borrowerPartyReference (defined in BusinessEventParties.model group),

comment (defined in AbstractLoanEvent complexType),

correctedEventIdentifier,

effectiveDate (defined in AbstractLoanServicingEvent complexType),

eventIdentifier (defined in AbstractLoanEvent complexType),

facilityReference (defined in AbstractFacilityEvent complexType),

legalActionReference (defined in AbstractLoanServicingEvent complexType),

lenderPartyReference (defined in LenderAndCashDetails.model group),

parentEventIdentifier,

previousEventIdentifier

All Direct / Indirect Based Elements (1):

facilityExtensionFeePayment

Known Usage Locations

As direct type of elements (1):

facilityExtensionFeePayment

Annotation

This fee represents any fee paid by the borrower to the syndicate lenders for extending an existing facility.

Type Definition Detail

Type Derivation Tree

AbstractLoanEvent (extension)

AbstractLoanServicingEvent (extension)

AbstractFacilityEvent (extension)

AbstractFacilityPaymentEvent (extension)

FacilityExtensionFeePayment

XML Source (w/o annotations (1); see within schema source)

<xsd:complexType name="FacilityExtensionFeePayment">

<xsd:complexContent>

<xsd:extension base="AbstractFacilityPaymentEvent"/>

</xsd:complexContent>

</xsd:complexType>
