complexType "LcRenewal"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 14 elements
Defined:
globally in fpml-loan-5-13.xsd; see XML source
Includes:
definitions of 2 elements
Used:
at 1 location

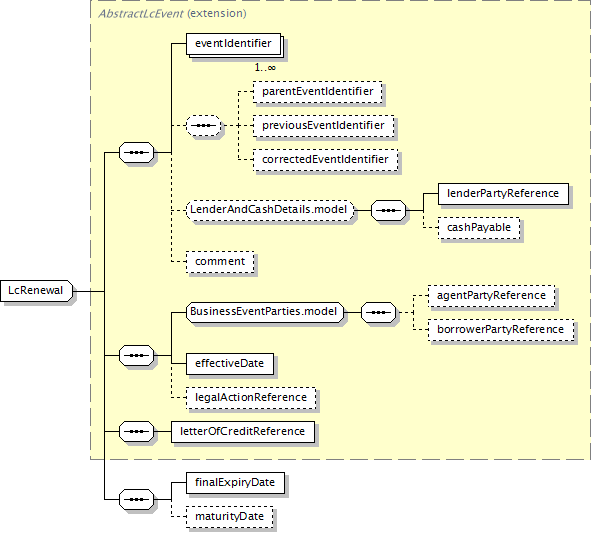

Component Diagram
XML Representation Summary
<...>

Content:
eventIdentifier+, (parentEventIdentifier?, previousEventIdentifier?, correctedEventIdentifier?)?, (lenderPartyReference, cashPayable?)?, comment?, agentPartyReference?, borrowerPartyReference?, effectiveDate, legalActionReference?, letterOfCreditReference, finalExpiryDate, maturityDate?
</...>
Content Model Elements (14):
agentPartyReference (defined in BusinessEventParties.model group),
borrowerPartyReference (defined in BusinessEventParties.model group),
cashPayable,
comment (defined in AbstractLoanEvent complexType),
correctedEventIdentifier,
effectiveDate (defined in AbstractLoanServicingEvent complexType),
eventIdentifier (defined in AbstractLoanEvent complexType),
finalExpiryDate (in lcRenewal),
legalActionReference (defined in AbstractLoanServicingEvent complexType),
lenderPartyReference (defined in LenderAndCashDetails.model group),
letterOfCreditReference (defined in AbstractLcEvent complexType),
maturityDate (in lcRenewal),
parentEventIdentifier,
previousEventIdentifier
All Direct / Indirect Based Elements (1):
lcRenewal
Known Usage Locations
Annotation
An event representing a change in the maturity date on an outstanding letter of credit.
Type Definition Detail
Type Derivation Tree
AbstractLoanEvent (extension)
  AbstractLoanServicingEvent (extension)
      AbstractLcEvent (extension)
          LcRenewal
XML Source (w/o annotations (3); see within schema source)
<xsd:complexType name="LcRenewal">
<xsd:complexContent>
<xsd:extension base="AbstractLcEvent">
<xsd:sequence>
<xsd:element name="finalExpiryDate" type="xsd:date"/>
<xsd:element minOccurs="0" name="maturityDate" type="xsd:date"/>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 2/14)
finalExpiryDate
Type:
xsd:date, predefined, simple content
The final letter of credit expiry date (as defined by the evergreen option).
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="finalExpiryDate" type="xsd:date"/>
maturityDate
Type:
xsd:date, predefined, simple content
The original maturity date of the letter of credit.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="maturityDate" type="xsd:date"/>
