complexType "LcTermination"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 13 elements
Defined:
globally in fpml-loan-5-13.xsd; see XML source
Includes:
definition of 1 element
Used:
at 1 location

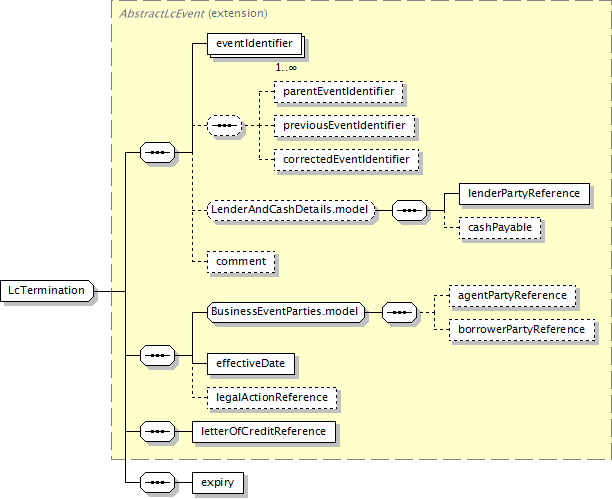

Component Diagram
XML Representation Summary
<...>

Content:
eventIdentifier+, (parentEventIdentifier?, previousEventIdentifier?, correctedEventIdentifier?)?, (lenderPartyReference, cashPayable?)?, comment?, agentPartyReference?, borrowerPartyReference?, effectiveDate, legalActionReference?, letterOfCreditReference, expiry
</...>
Content Model Elements (13):
agentPartyReference (defined in BusinessEventParties.model group),
borrowerPartyReference (defined in BusinessEventParties.model group),
cashPayable,
comment (defined in AbstractLoanEvent complexType),
correctedEventIdentifier,
effectiveDate (defined in AbstractLoanServicingEvent complexType),
eventIdentifier (defined in AbstractLoanEvent complexType),
expiry (in lcTermination),
legalActionReference (defined in AbstractLoanServicingEvent complexType),
lenderPartyReference (defined in LenderAndCashDetails.model group),
letterOfCreditReference (defined in AbstractLcEvent complexType),
parentEventIdentifier,
previousEventIdentifier
All Direct / Indirect Based Elements (1):
lcTermination
Known Usage Locations
Annotation
An event representing either the expiry or cancellation of a letter of credit
Type Definition Detail
Type Derivation Tree
AbstractLoanEvent (extension)
  AbstractLoanServicingEvent (extension)
      AbstractLcEvent (extension)
          LcTermination
XML Source (w/o annotations (2); see within schema source)
<xsd:complexType name="LcTermination">
<xsd:complexContent>
<xsd:extension base="AbstractLcEvent">
<xsd:sequence>
<xsd:element name="expiry" type="xsd:boolean"/>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 1/13)
expiry
Type:
xsd:boolean, predefined, simple content
Determines whether this event was created due to a natural expiration of the letter of credit or an unscheduled cancellation.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="expiry" type="xsd:boolean"/>
