complexType "LoanAllocationSettlementDateFinalization"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 9 elements
Defined:
globally in fpml-loan-5-13.xsd; see XML source
Includes:
definition of 1 element
Used:
at 1 location

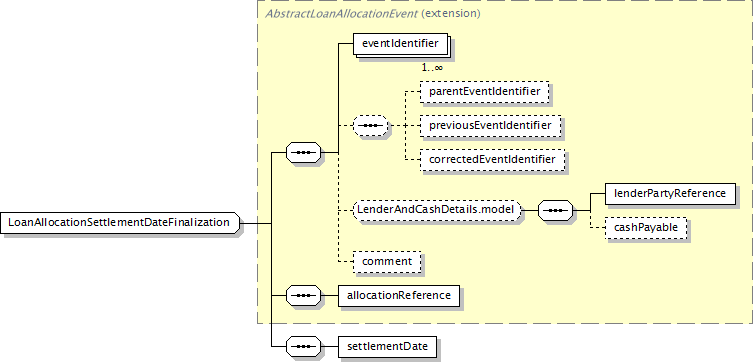

Component Diagram
XML Representation Summary
<...>

Content:
eventIdentifier+, (parentEventIdentifier?, previousEventIdentifier?, correctedEventIdentifier?)?, (lenderPartyReference, cashPayable?)?, comment?, allocationReference, settlementDate
</...>
Content Model Elements (9):
allocationReference (defined in AbstractLoanAllocationEvent complexType),
cashPayable,
comment (defined in AbstractLoanEvent complexType),
correctedEventIdentifier,
eventIdentifier (defined in AbstractLoanEvent complexType),
lenderPartyReference (defined in LenderAndCashDetails.model group),
parentEventIdentifier,
previousEventIdentifier,
settlementDate (in loanAllocationSettlementDateFinalization)
All Direct / Indirect Based Elements (1):
loanAllocationSettlementDateFinalization
Known Usage Locations
Annotation
An event structure defining the trade settlement date.
Type Definition Detail
Type Derivation Tree
AbstractLoanEvent (extension)
  AbstractLoanAllocationEvent (extension)
      LoanAllocationSettlementDateFinalization
XML Source (w/o annotations (2); see within schema source)
<xsd:complexType abstract="false" name="LoanAllocationSettlementDateFinalization">
<xsd:complexContent>
<xsd:extension base="AbstractLoanAllocationEvent">
<xsd:sequence>
<xsd:element name="settlementDate" type="xsd:date"/>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 1/9)
settlementDate
Type:
xsd:date, predefined, simple content
The settlement date associated with a single loan trade allocation.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="settlementDate" type="xsd:date"/>
