complexType "AbstractLoanAllocationEvent"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 8 elements
Abstract:
(cannot be assigned directly to elements used in instance XML documents)
Defined:
globally in fpml-loan-5-13.xsd; see XML source
Includes:
definition of 1 element
Used:
at 7 locations

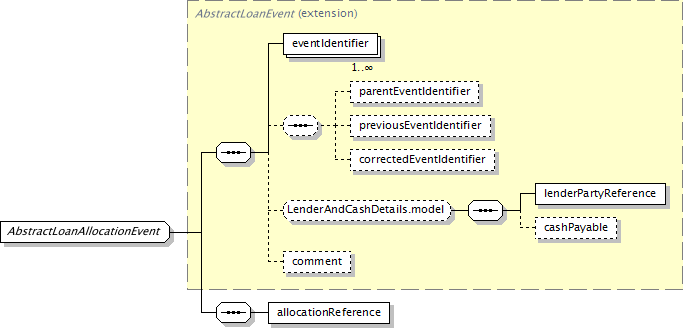

Component Diagram
XML Representation Summary
<...>

Content:
eventIdentifier+, (parentEventIdentifier?, previousEventIdentifier?, correctedEventIdentifier?)?, (lenderPartyReference, cashPayable?)?, comment?, allocationReference
</...>
Content Model Elements (8):
allocationReference (defined in AbstractLoanAllocationEvent complexType),
cashPayable,
comment (defined in AbstractLoanEvent complexType),
correctedEventIdentifier,
eventIdentifier (defined in AbstractLoanEvent complexType),
lenderPartyReference (defined in LenderAndCashDetails.model group),
parentEventIdentifier,
previousEventIdentifier
Known Direct Subtypes (6):
AbstractLoanAllocationSettlementEvent, LoanAllocationEvent, LoanAllocationSettlementDateAvailability, LoanAllocationSettlementDateFinalization, LoanAllocationTransferFeeDue, LoanAllocationTransferFeeOwed
Known Indirect Subtypes (1):
LoanAllocationSettlement
All Direct / Indirect Based Elements (8):
loanAllocation, loanAllocationConfirmation, loanAllocationEventGroup, loanAllocationFeeDue, loanAllocationFeeOwed, loanAllocationSettlement, loanAllocationSettlementDateAvailability, loanAllocationSettlementDateFinalization
Known Usage Locations
Annotation
An abstract structure defining fundamental allocation event information.
Type Definition Detail
Type Derivation Tree
AbstractLoanEvent (extension)
  AbstractLoanAllocationEvent
XML Source (w/o annotations (2); see within schema source)
<xsd:complexType abstract="true" name="AbstractLoanAllocationEvent">
<xsd:complexContent>
<xsd:extension base="AbstractLoanEvent">
<xsd:sequence>
<xsd:element name="allocationReference" type="LoanAllocationReference"/>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 1/8)
allocationReference
Type:
LoanAllocationReference, empty content
A reference to an allocation.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="allocationReference" type="LoanAllocationReference"/>
