complexType "LoanAllocationTransferFeeOwed"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 11 elements
Defined:
globally in fpml-loan-5-13.xsd; see XML source
Used:
at 1 location

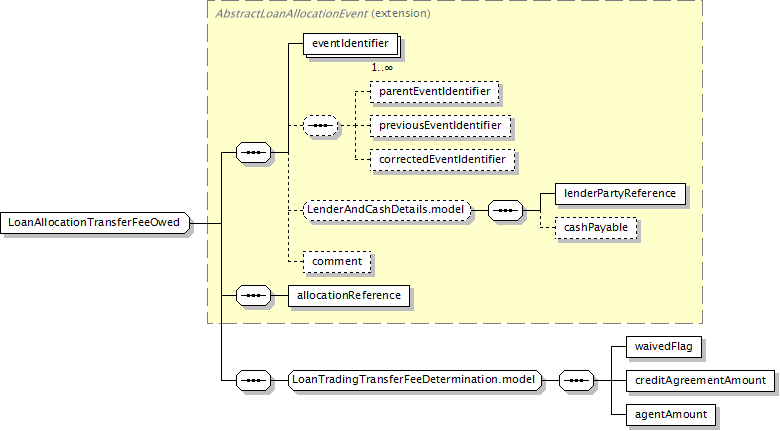

Component Diagram
XML Representation Summary
<...>

Content:
eventIdentifier+, (parentEventIdentifier?, previousEventIdentifier?, correctedEventIdentifier?)?, (lenderPartyReference, cashPayable?)?, comment?, allocationReference, waivedFlag, creditAgreementAmount, agentAmount
</...>
Content Model Elements (11):
agentAmount,
allocationReference (defined in AbstractLoanAllocationEvent complexType),
cashPayable,
comment (defined in AbstractLoanEvent complexType),
correctedEventIdentifier,
creditAgreementAmount,
eventIdentifier (defined in AbstractLoanEvent complexType),
lenderPartyReference (defined in LenderAndCashDetails.model group),
parentEventIdentifier,
previousEventIdentifier,
waivedFlag
All Direct / Indirect Based Elements (1):
loanAllocationFeeOwed
Known Usage Locations
Annotation
A structure that defines details related to the admin agent's determination of transfer fee(s) owed on an allocation.
Type Definition Detail
Type Derivation Tree
AbstractLoanEvent (extension)
  AbstractLoanAllocationEvent (extension)
      LoanAllocationTransferFeeOwed
XML Source (w/o annotations (2); see within schema source)
<xsd:complexType abstract="false" name="LoanAllocationTransferFeeOwed">
<xsd:complexContent>
<xsd:extension base="AbstractLoanAllocationEvent">
<xsd:sequence>
<xsd:group ref="LoanTradingTransferFeeDetermination.model"/>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
