complexType "SimplePayment"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 1 attribute, 6 elements
Defined:
globally in fpml-shared-5-13.xsd; see XML source
Includes:
definitions of 2 elements
Used:
at 9 locations

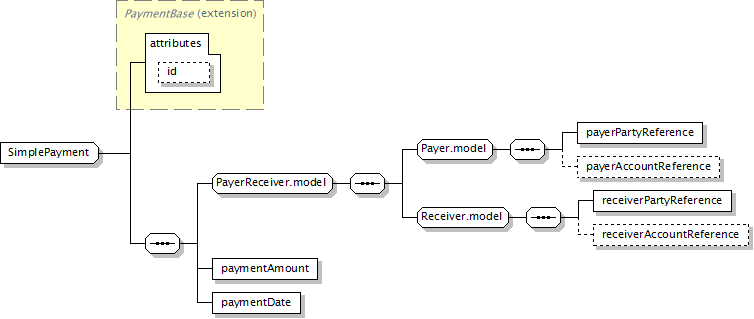

Component Diagram
XML Representation Summary
<...

id
 =
xsd:ID

>

Content:
payerPartyReference, payerAccountReference?, receiverPartyReference, receiverAccountReference?, paymentAmount, paymentDate
</...>
Content Model Elements (6):
payerAccountReference,
payerPartyReference (defined in Payer.model group),
paymentAmount (defined in SimplePayment complexType),
paymentDate (defined in SimplePayment complexType),
receiverAccountReference,
receiverPartyReference (defined in Receiver.model group)
Known Direct Subtypes (1):
Premium
All Direct / Indirect Based Elements (9):
additionalPayment (in fxAccrualForward),
additionalPayment (in fxTargetKnockoutForward),
cashSettlement (defined in OptionExercise complexType),
cashSettlement (in noTouch),
cashSettlement (in touch in optionEvent),
initialFee,
payment (in rebate in barrier in fxTargetKnockoutForward),
premium (defined in OptionBaseExtended complexType),
premium (in genericProduct)
Known Usage Locations
Annotation
A complex type to specified payments in a simpler fashion than the Payment type. This construct should be used from the version 4.3 onwards.
Type Definition Detail
Type Derivation Tree
PaymentBase (extension)
  SimplePayment
XML Source (w/o annotations (2); see within schema source)
<xsd:complexType name="SimplePayment">
<xsd:complexContent>
<xsd:extension base="PaymentBase">
<xsd:sequence>
<xsd:group ref="PayerReceiver.model"/>
<xsd:element name="paymentAmount" type="NonNegativeMoney"/>
<xsd:element name="paymentDate" type="AdjustableOrRelativeDate"/>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 2/6)
paymentAmount
Type:
NonNegativeMoney, complex content
XML Source (see within schema source)
<xsd:element name="paymentAmount" type="NonNegativeMoney"/>
paymentDate
Type:
AdjustableOrRelativeDate, complex content
The payment date. This date is subject to adjustment in accordance with any applicable business day convention.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="paymentDate" type="AdjustableOrRelativeDate"/>
