group "TradingAndPostTradeEvents.model"
Namespace:
http://www.fpml.org/FpML-5/transparency
Content:
9 elements
Defined:
globally in fpml-business-events-5-13.xsd; see XML source
Includes:
definition of 1 element
Used:
at 2 locations

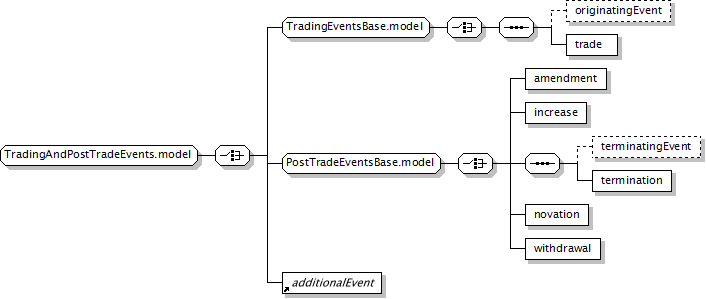

Component Diagram
Complex Content Model
(originatingEvent?, trade) | amendment | increase | (terminatingEvent?, termination) | novation | withdrawal | additionalEvent
Content Model Elements (9):
additionalEvent,
amendment,
increase,
novation,
originatingEvent (defined in TradingEventsBase.model group),
terminatingEvent,
termination,
trade (defined in TradingEventsBase.model group),
withdrawal
Known Usage Locations
Annotation
Choice between a trading, a post-trade event, and the extension point additional event
XML Source (w/o annotations (1); see within schema source)
<xsd:group name="TradingAndPostTradeEvents.model">
<xsd:choice>
<xsd:group ref="TradingEventsBase.model"/>
<xsd:group ref="PostTradeEventsBase.model"/>
<xsd:element ref="additionalEvent"/>
</xsd:choice>
</xsd:group>
Content Element Detail (all declarations; defined within this component only; 1/9)
additionalEvent
Type:
AdditionalEvent, complex content
Abstract:
(may not be used directly in instance XML documents)
XML Source (see within schema source)
<xsd:element ref="additionalEvent"/>
