complexType "PublicExecutionReport"

Namespace:	http://www.fpml.org/FpML-5/transparency
Content:	complex, 3 attributes, 18 elements
Defined:	globally in fpml-transparency-processes-5-13.xsd; see XML source
Used:	at 1 location

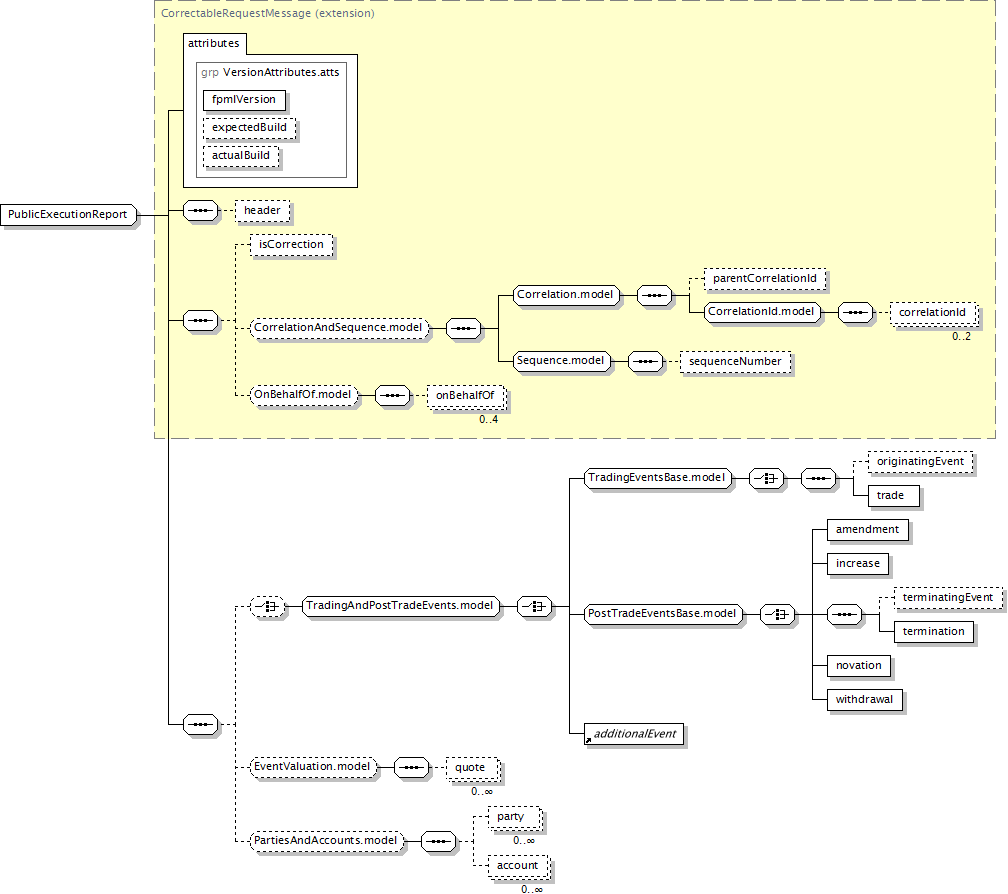

Component Diagram

XML Representation Summary

<...

fpmlVersion	=	xsd:token
expectedBuild	=	xsd:positiveInteger
actualBuild	=	"4"

Content:

</...>

Content Model Elements (18):

header (defined in RequestMessage complexType),

increase,

isCorrection (defined in CorrectableRequestMessage complexType),

novation,

onBehalfOf (defined in OnBehalfOf.model group),

originatingEvent (defined in TradingEventsBase.model group),

parentCorrelationId,

party (defined in PartiesAndAccounts.model group),

quote (in publicExecutionReport),

sequenceNumber (defined in Sequence.model group),

terminatingEvent,

termination,

trade (defined in TradingEventsBase.model group),

withdrawal

All Direct / Indirect Based Elements (1):

publicExecutionReport

Known Usage Locations

As direct type of elements (1):

publicExecutionReport

Type Definition Detail

Type Derivation Tree

Document (extension)

Message (extension)

RequestMessage (extension)

CorrectableRequestMessage (extension)

PublicExecutionReport

XML Source (w/o annotations (2); see within schema source)

<xsd:complexType name="PublicExecutionReport">

<xsd:complexContent>

<xsd:extension base="CorrectableRequestMessage">

<xsd:sequence>

<xsd:choice minOccurs="0">

<xsd:group ref="TradingAndPostTradeEvents.model"/>

</xsd:choice>

<xsd:group minOccurs="0" ref="EventValuation.model"/>

<xsd:group minOccurs="0" ref="PartiesAndAccounts.model"/>

</xsd:sequence>

</xsd:extension>

</xsd:complexContent>

</xsd:complexType>
